At DuCo we know the spaces we spend our time in play a big role in our quality of life. Windows, doors and details dictate the light, warmth and outlook of a room: contributing to our happiness, health and wellbeing.
For over 50 years we’ve been helping create spaces that people love to be in. From our family-owned workshop in the Waikato, our expert team design, manufacture and install premium quality joinery and accessories throughout the North Island.
At DuCo we know the spaces we spend our time in play a big role in our quality of life. Windows, doors and details dictate the light, warmth and outlook of a room: contributing to our happiness, health and wellbeing.
For over 50 years we’ve been helping create spaces that people love to be in. From our family-owned workshop in the Waikato, our expert team design, manufacture and install premium quality joinery and accessories throughout the North Island.
Urbo
Urbo is all about fine lines, clean shapes and a combination of square and radiused edges, delivering a lighter look without compromising on strength.

The Urbo Range

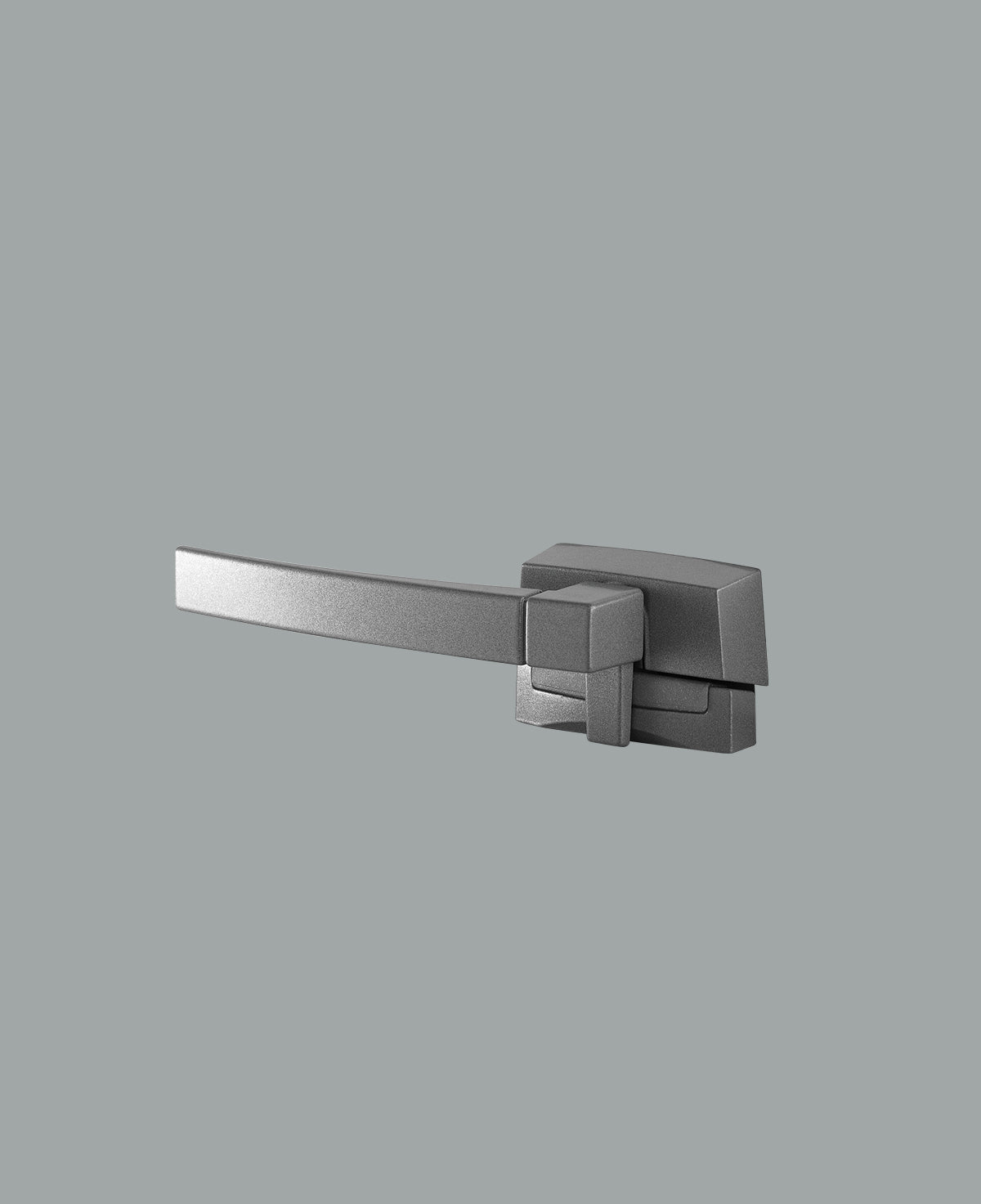

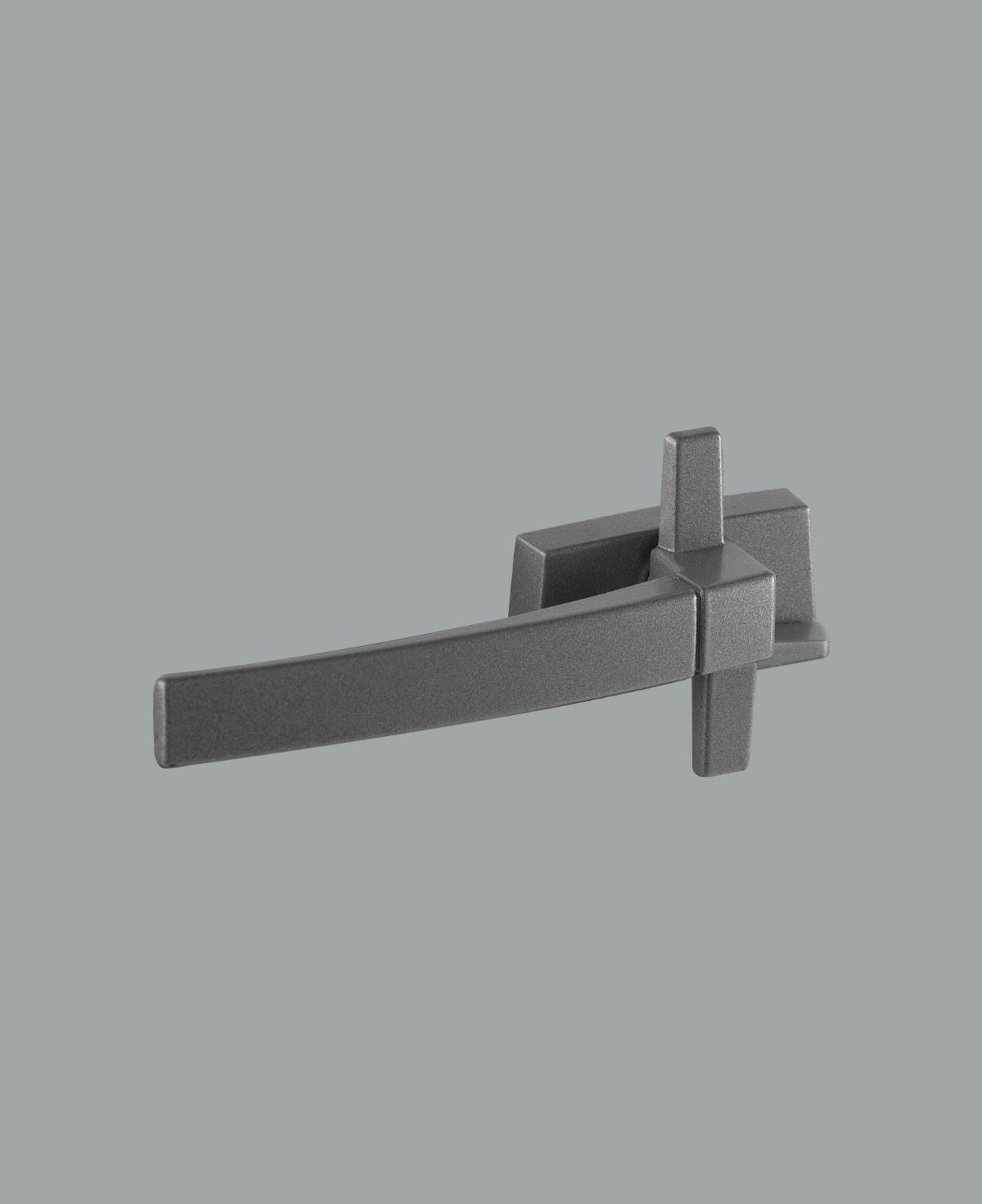

Urbo Window Fastener
Closes against the window frame with no visible flap or wedge. Available in a low profile option.
Available sizes
110mm w x 33mm d

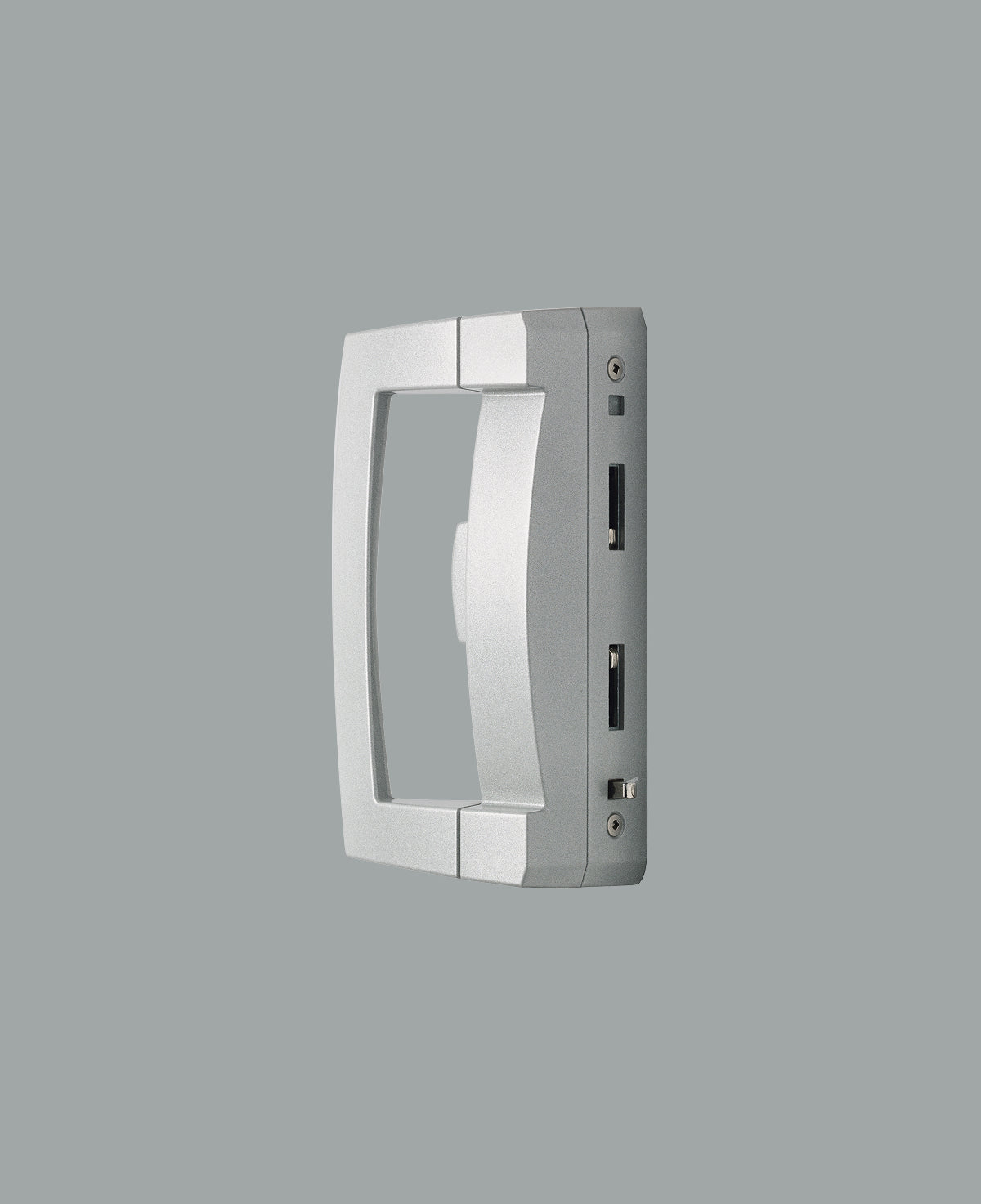

Urbo Surface Mount Sliding Door Handle
An all-in-one handle and lock for sliding doors or windows. Snib or keyway installed in the body of the handle.
Available sizes
180mm h

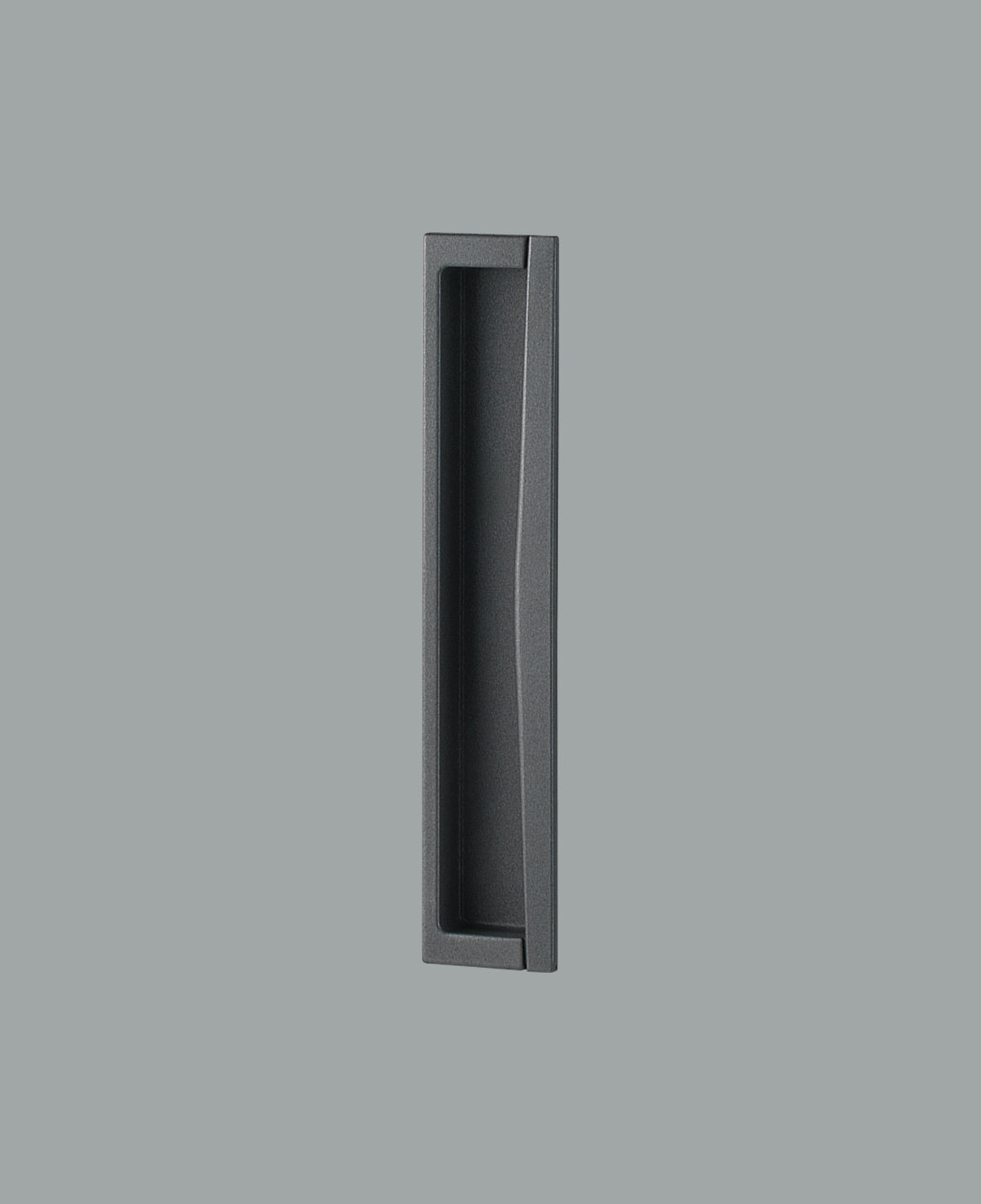

Urbo Flush Pull
The flush pull is ideal for lighter sliding panels where a robust hand grip is not required.
Available sizes
220mm h x 44mm w

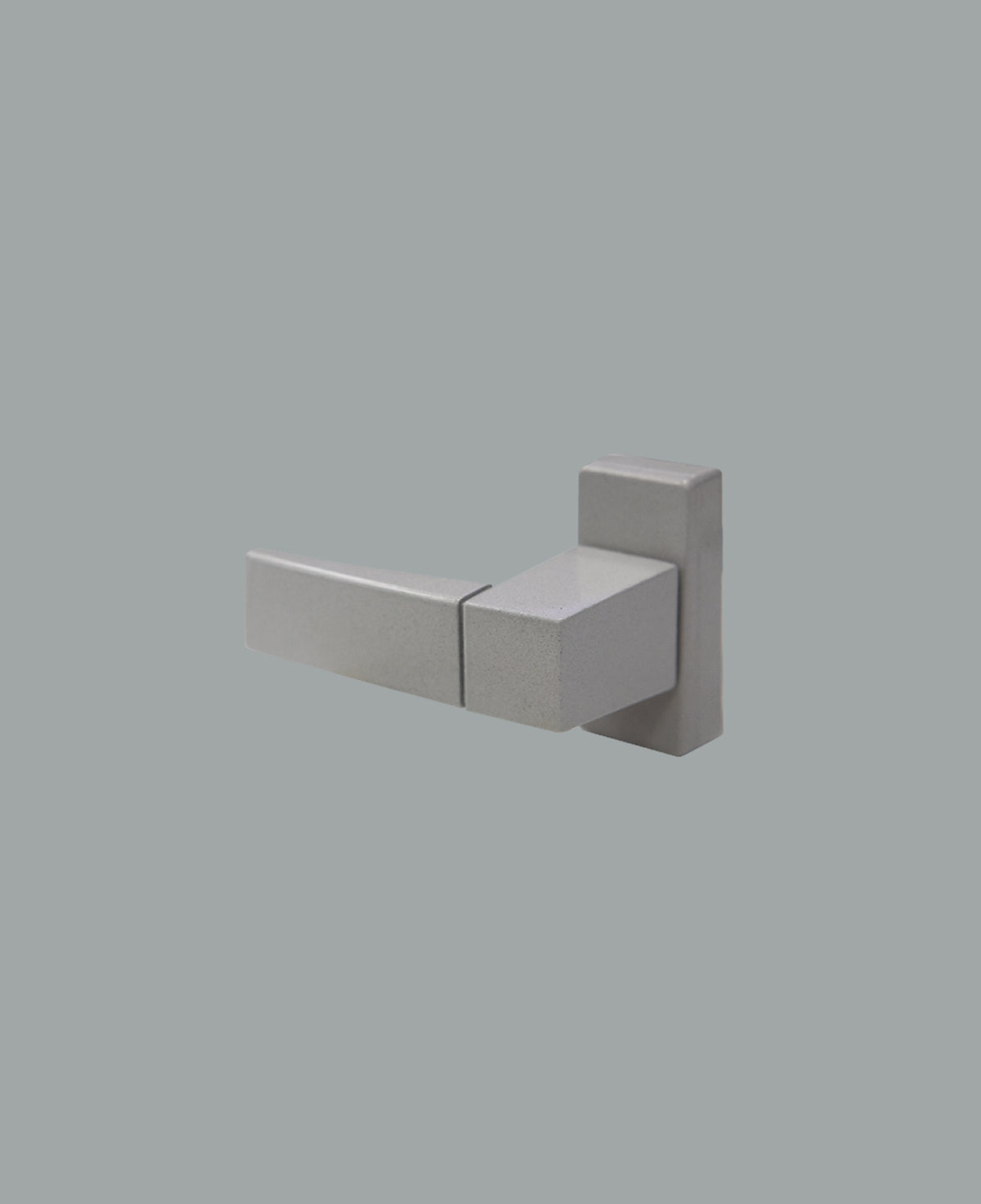

Urbo Half Lever Handle
This small lever handle locks sliding door panels together, usually in 4-panel configurations. May be used in conjunction with a pull handle on heavier doors. Self-latching option available.
Available sizes
72mm w x 50mm d

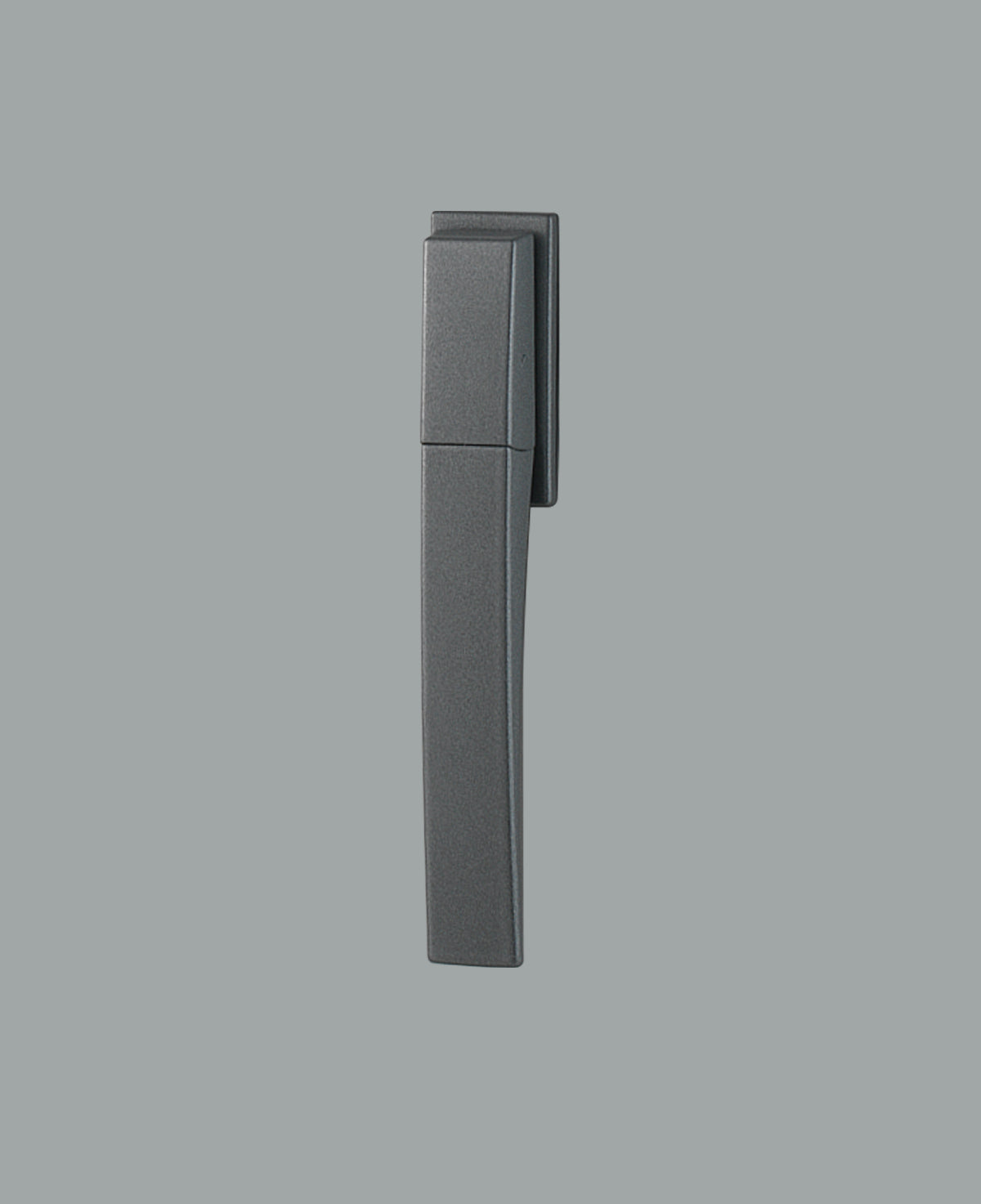

Urbo Bi-fold Handle
This swivel lock activates locking rods in the top and bottom of the bifold door or window panel.
Available sizes
153mm h x 24mm w

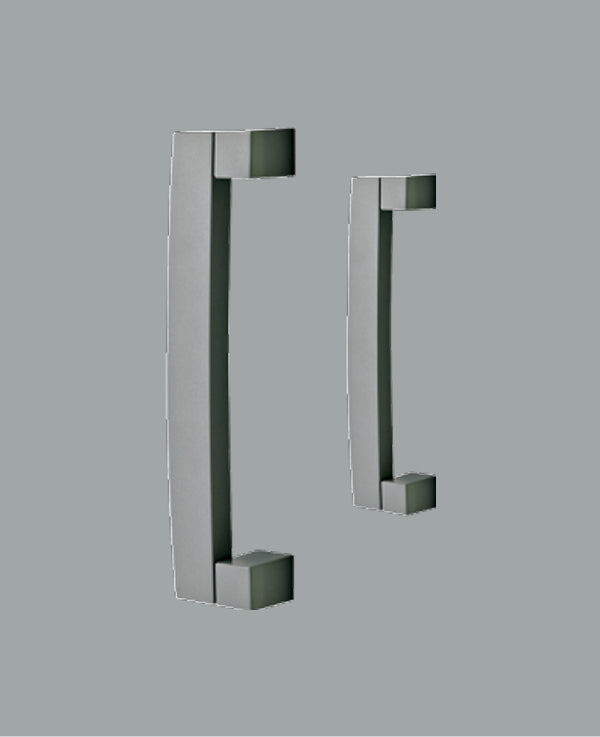

Urbo Pull Handle
Lock is fixed separately to the door and is activated by a key or interior turn knob. A four-point locking system is available.
Apex or Windsor turn sets are compatible with this pull handle.
Available sizes
- Small: 255mm h
- Large: 323mm h

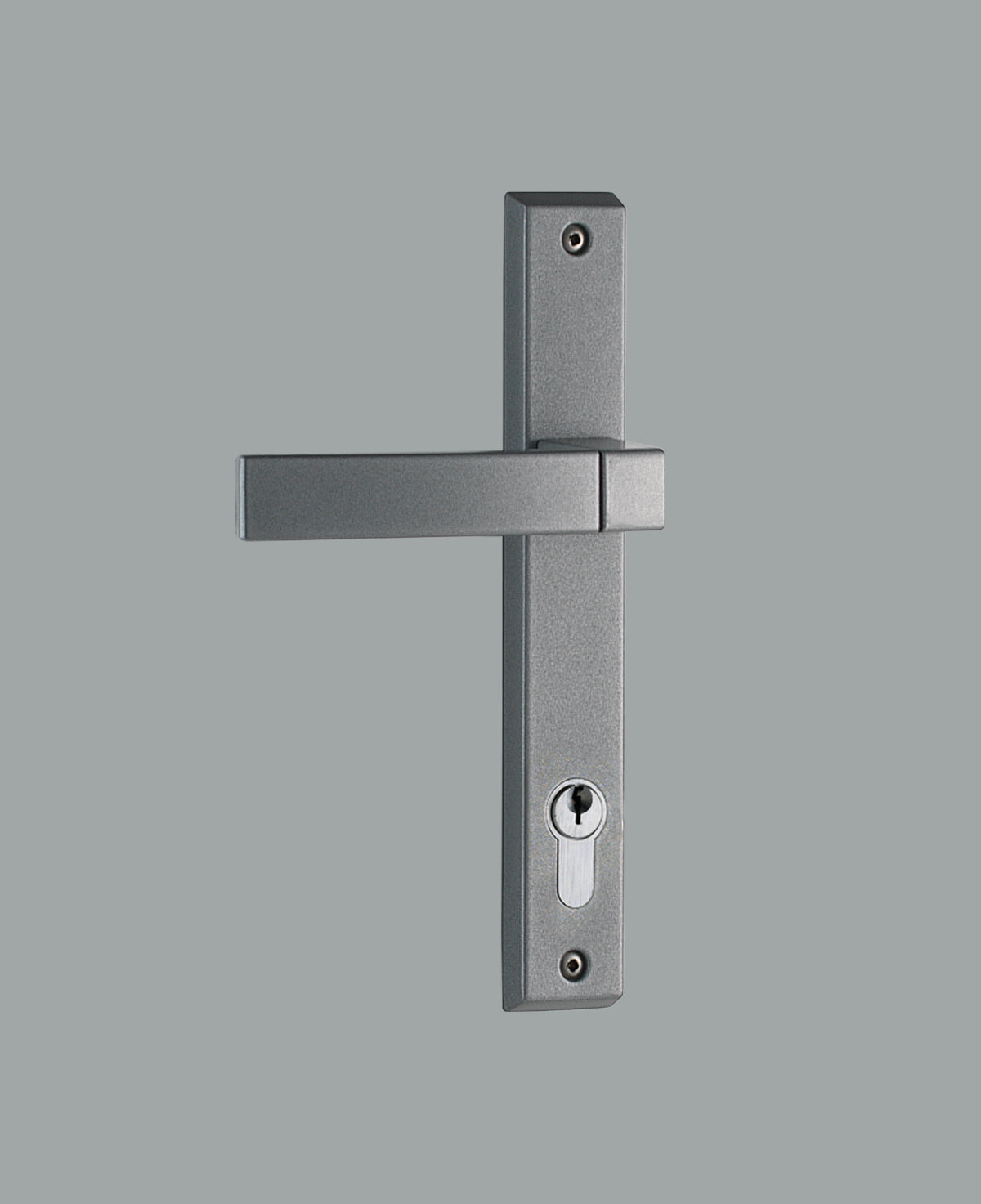

Urbo Lever Door Handle
Offers multi-point locking, and when the handle is lifted upwards it activates locking rods at the top and bottom of the door for added security.
Available sizes
Small
- Handle length: 120mm h
- Baseplate: 212mm h
Large
- Handle length: 150mm h
- Baseplate: 292mm h

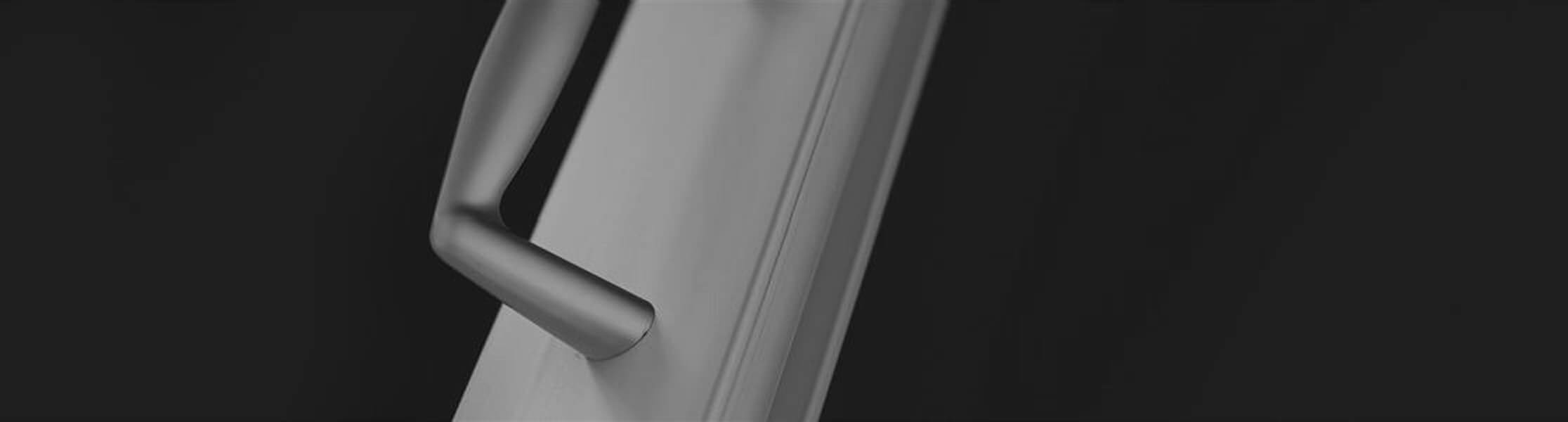

Miro
The handles in the Miro range are characterised by elegant, ergonomic curves. These die-cast handles are a contemporary classic. Miro is a powdercoated hardware option.

The Miro Range

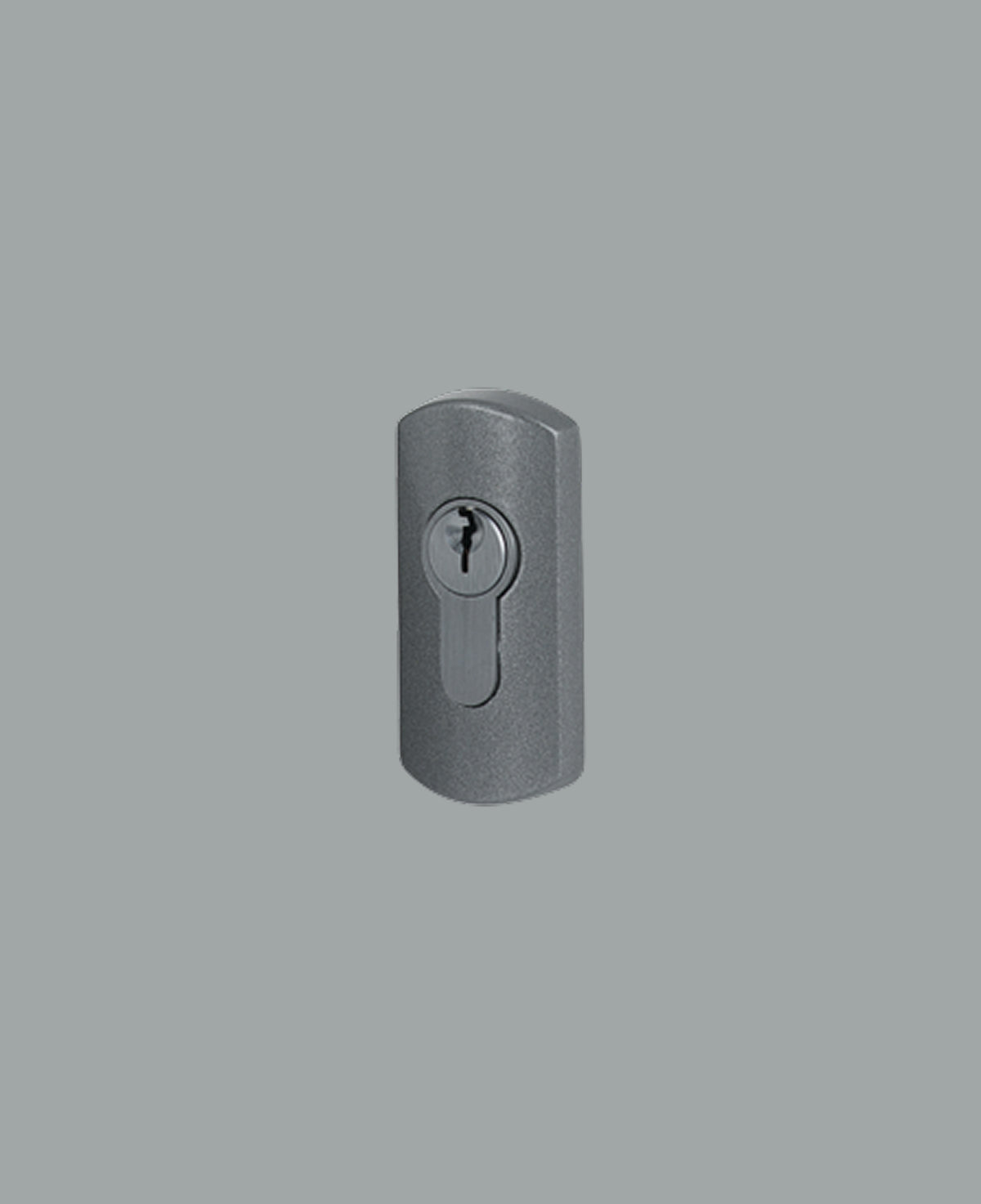

Miro Escutcheon

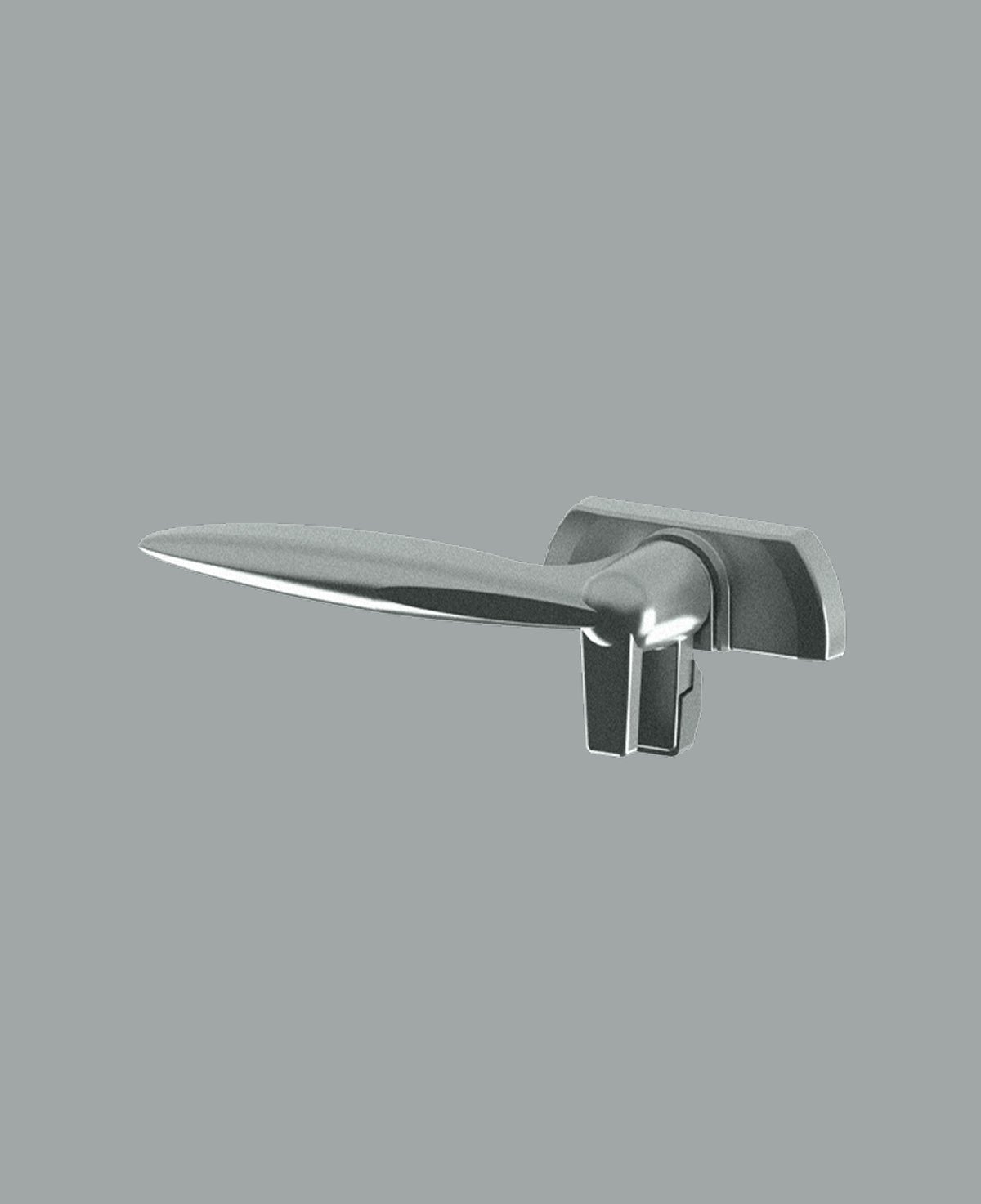

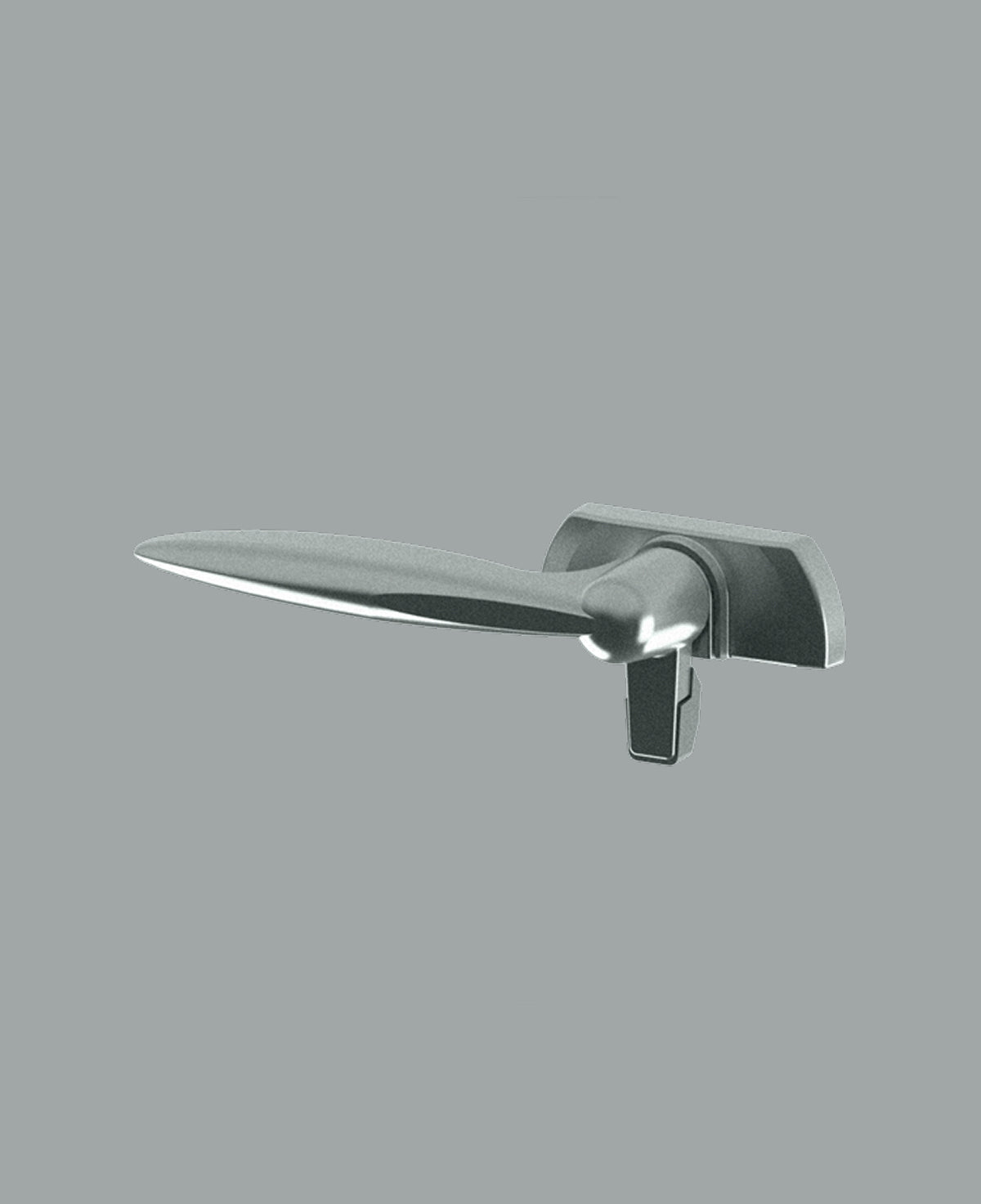

Miro Venting window fastener
A venting option of the window fastener is available which allows the window to be fastened in a partially open position for passive ventilation.
Available sizes
100mm w x 39mm d

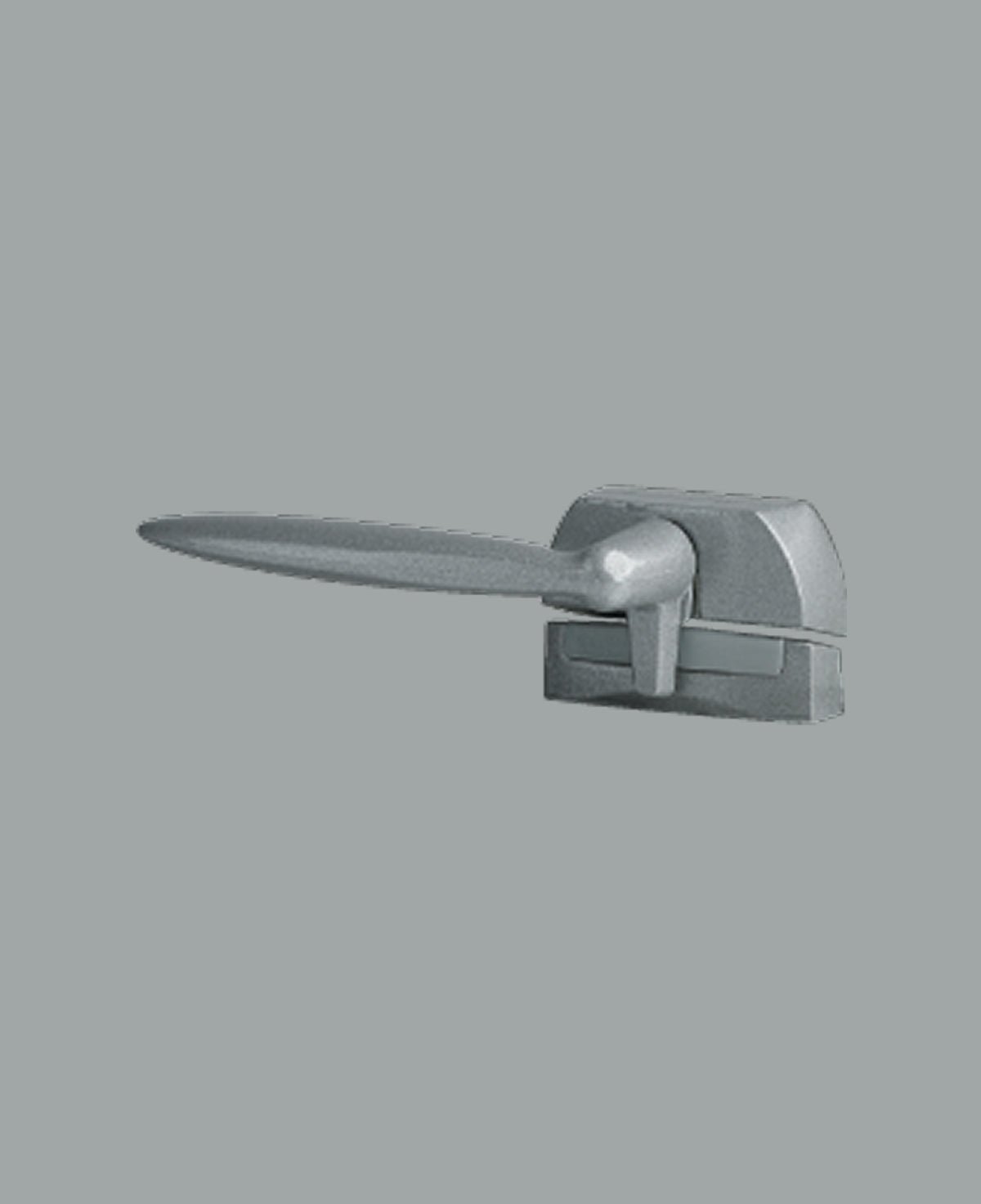

Miro Architectural window fastener
Suitable for APL Architectural Series and Smartwood windows. A separate colour matching wedge is fitted to the frame or transom.
Available sizes
100mm w x 48mm d

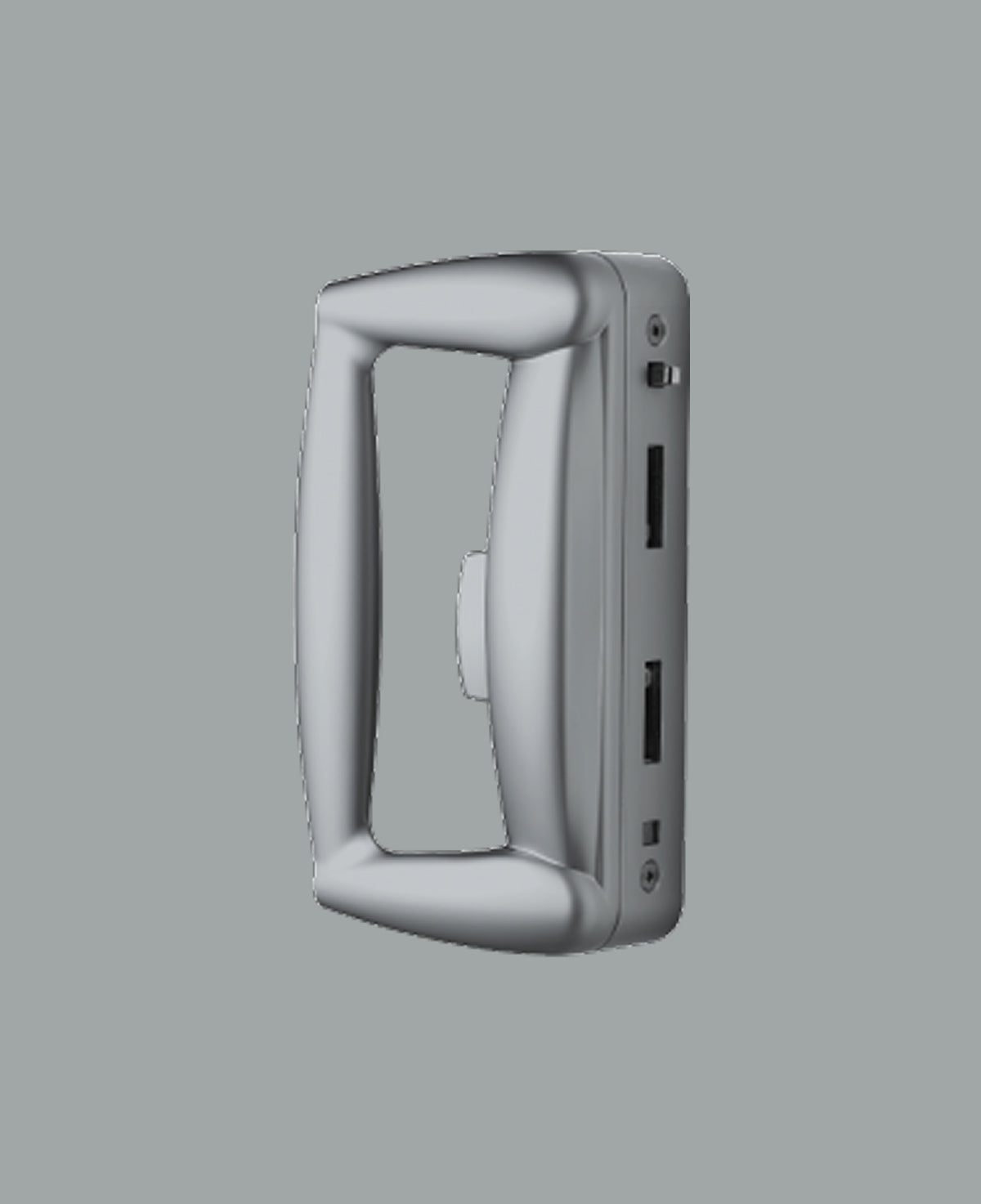

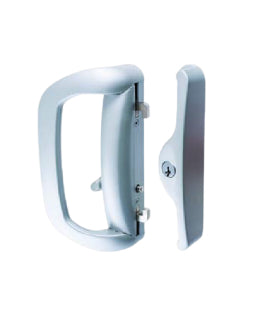

Miro Surface mount sliding door handle
This all-in-one handle and lock for sliding doors or windows has no separately installed snib or keyway.
Available sizes
- Small: 166mm h
- Large: 240mm h

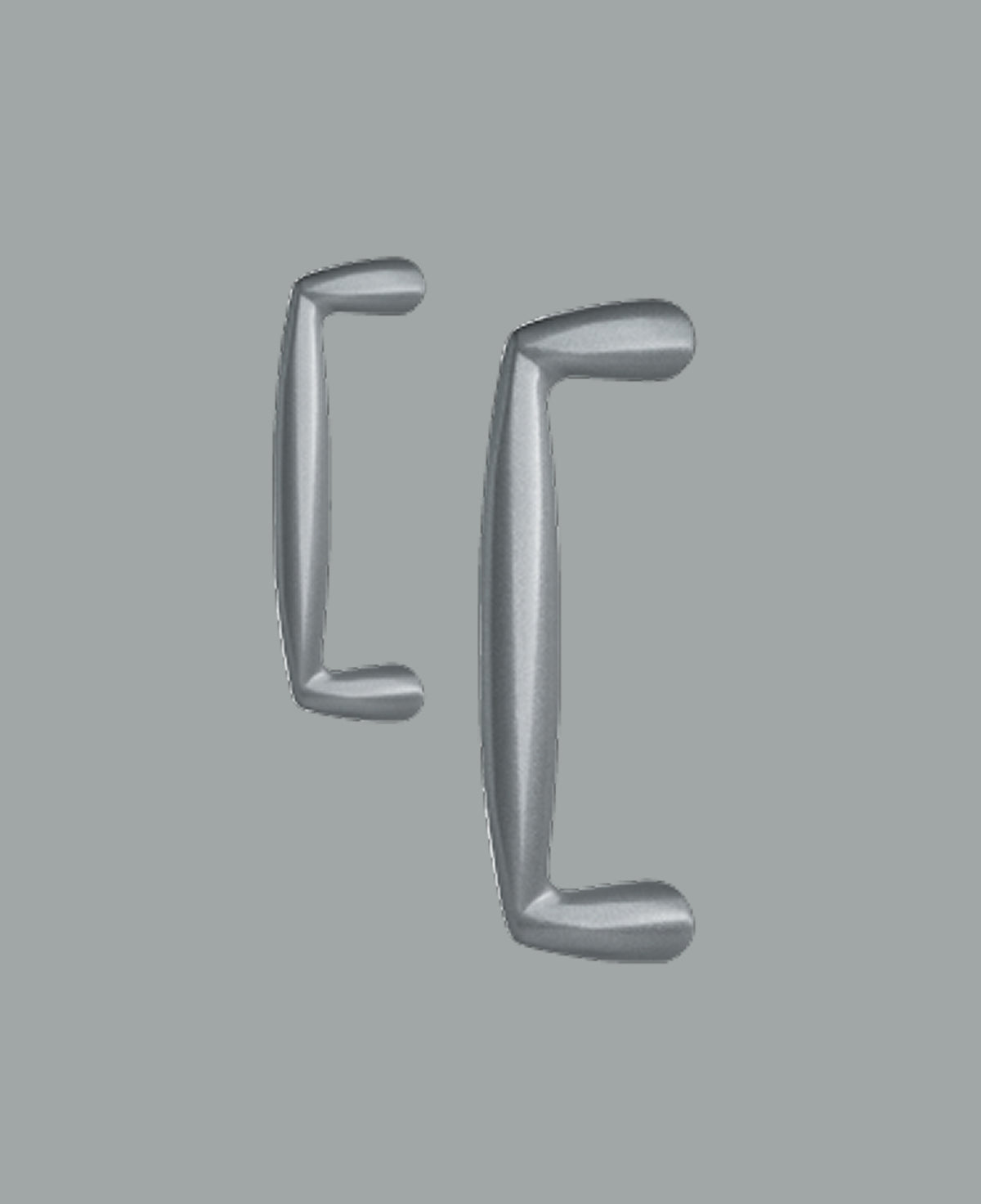

Miro Pull Handle
The small Miro sliding door handle is suited to Residential Series sliding doors. The large Miro sliding door handle is suited to use on entrance doors and Metro Series and APL Architectural Series sliding doors.
Apex or Windsor turn sets are compatible with this pull handle.
Available sizes
- Small: 166mm h
- Large: 240mm h

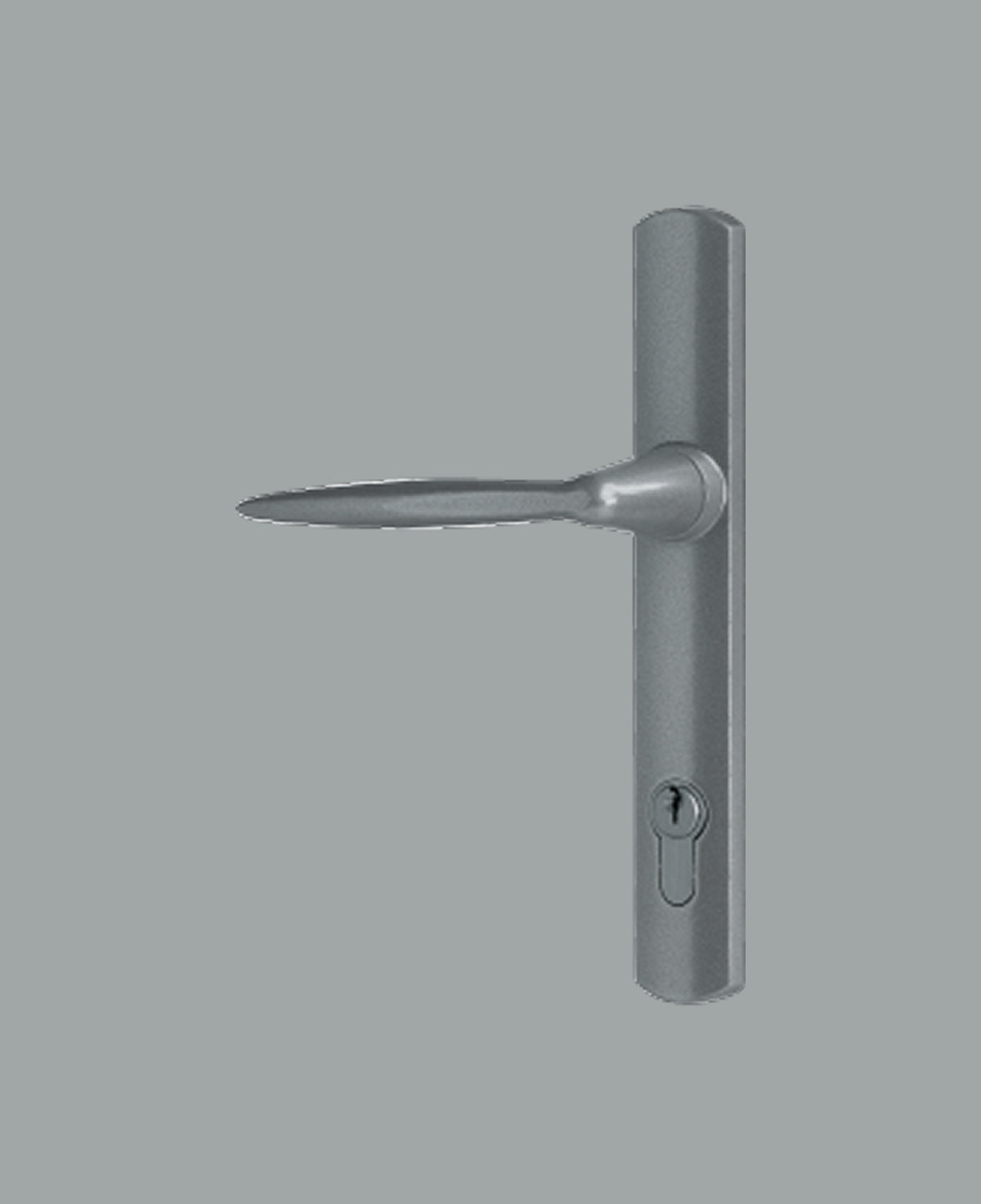

Miro Lever Door Handle
Available in a variety of locking options. An upward handle movement activates multi-point locking.
Available sizes
Handle length: 117mm h Baseplate: 210mm h
Icon
New Zealand’s first fully integrated range of 316 grade stainless steel hardware for aluminium windows and doors.
The Icon Range

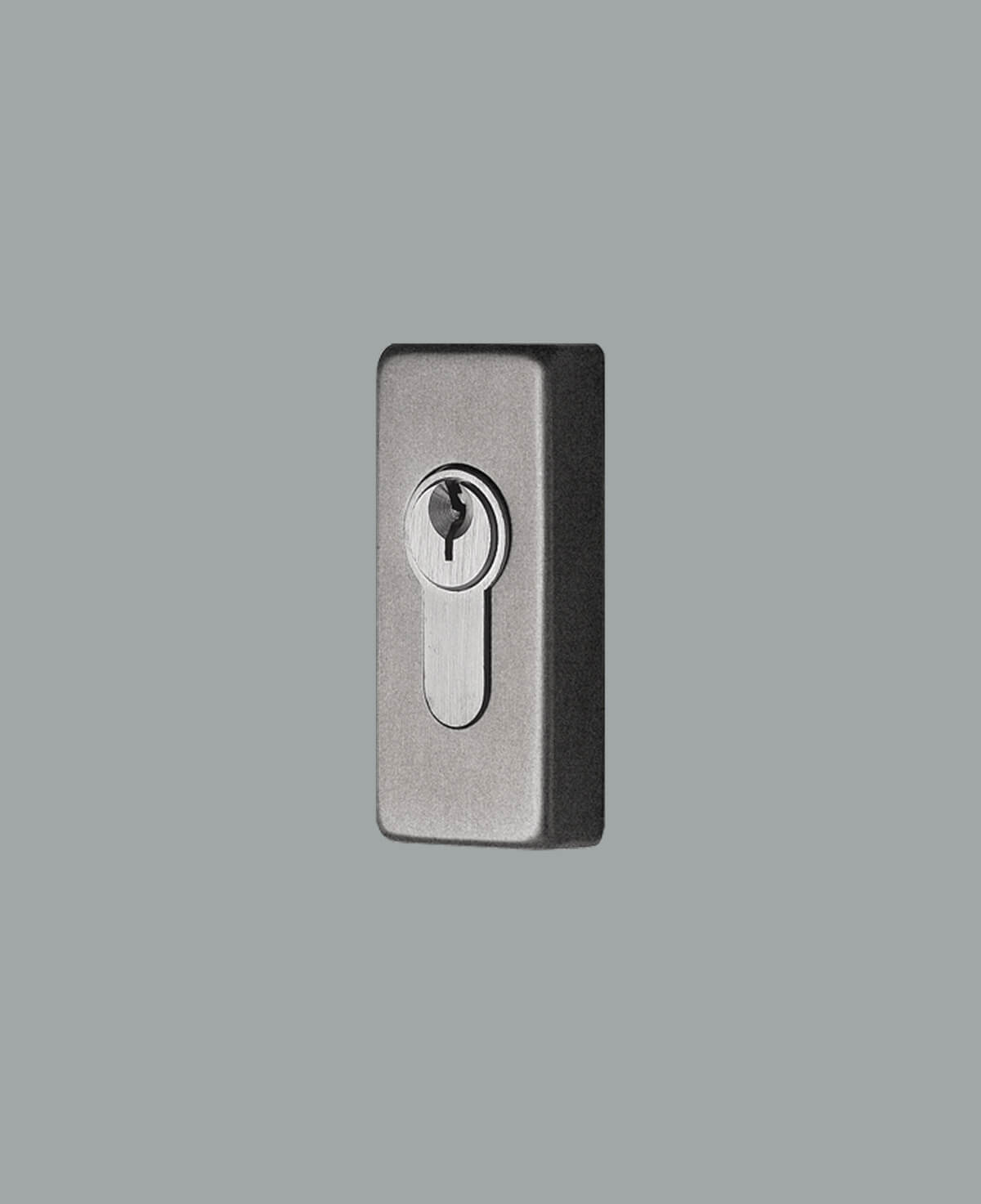

Icon Escutcheon
Icon Architectural window fastener
Suitable for APL Architectural Series . A separate colour matching wedge is fitted to the frame or transom.
Available sizes
110mm w x 36mm d
Icon Window Fastener
This fastener for Residential Series awning and casement windows blends square-edged and radiused looks. Closes against the window frame with no visible flap or wedge. Available in a low profile option.
Available sizes
110mm w x 31mm d
Icon Flush Pull
The flush pull is ideal for lighter sliding panels where a robust hand grip is not required.
Available sizes
230mm h x 43mm w
Icon Bi-fold handle
This swivel lock activates locking rods in the top and bottom of the door or window panel.
Available sizes
170mm h x 25mm w
Icon Pull Handle
Fixed to the door on both the interior and exterior with a lock fixed separately. Apex or Windsor turn sets are compatible with this handle.
Available sizes
Small: 325mm h
Medium: 630mm h
Large: 930mm h
XL: 1230mm h
XXL: 1820mm h
Icon Lever Door Handle
A clean compact lever handle. Available in a variety of locking options. An upward handle movement activates multi-point locking.
Available sizes
Small
Handle length: 110mm h
Baseplate: 210mm h
Large
Handle length: 150mm h
Baseplate: 290mm h

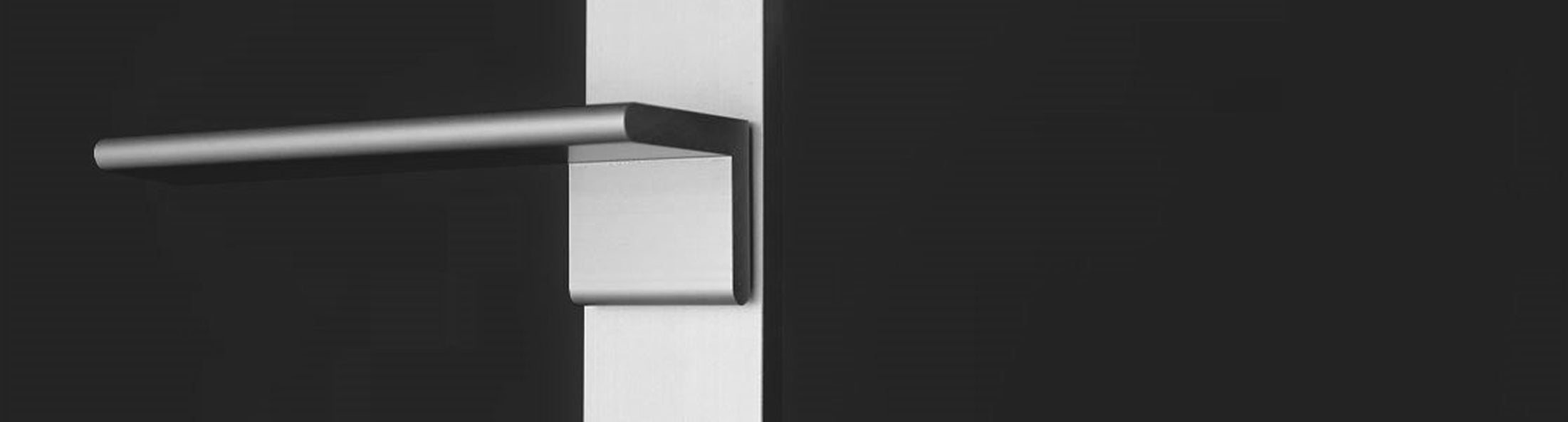

Elemental
As its name implies, the Elemental hardware range strives for simplicity. Elemental is a unique range of hardware that is made from extruded aluminium.
Available in anodised colours: Silver, Black, Champagne, Light Bronze, Medium Bronze, Dark Bronze.

Elemental Range

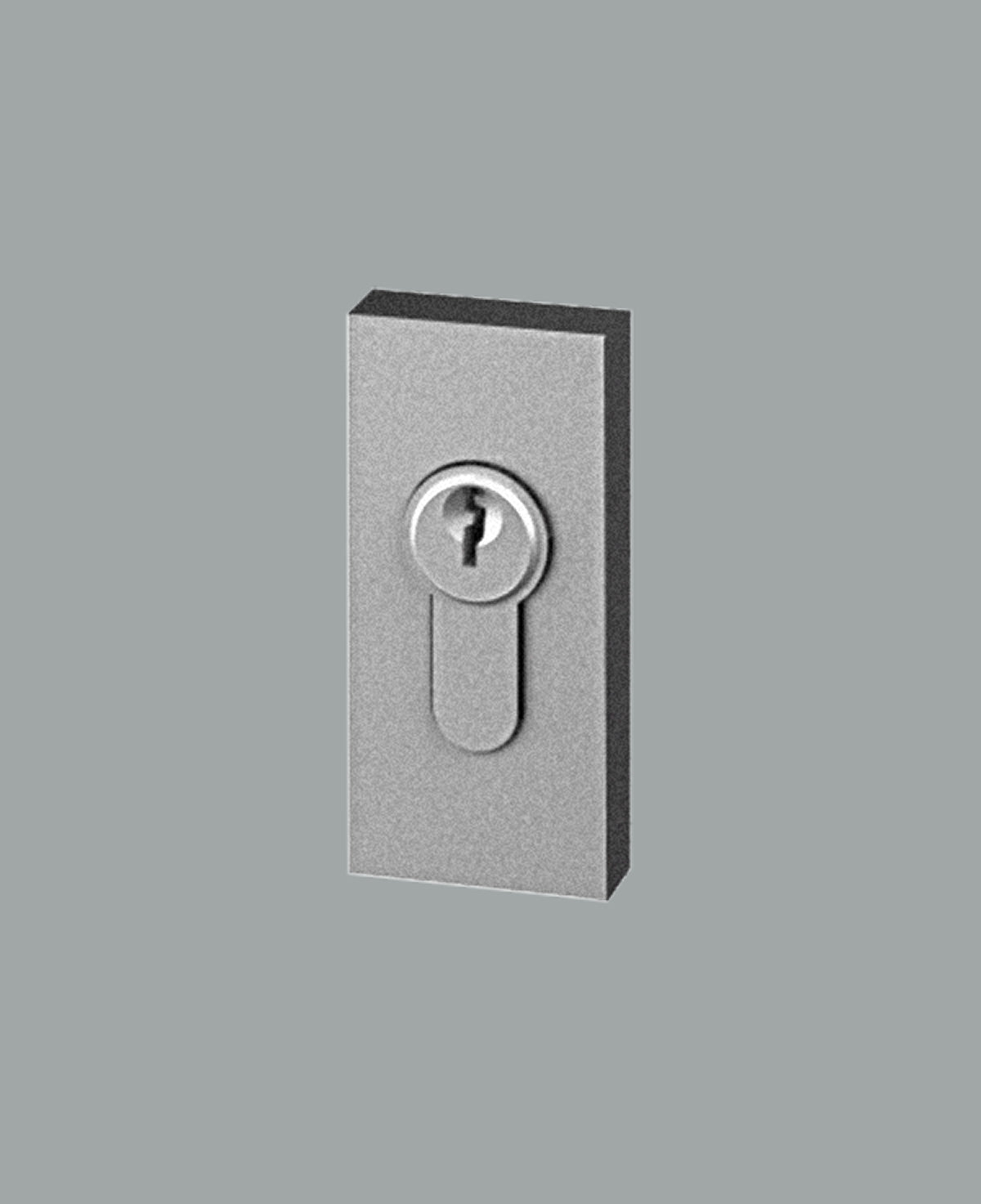

Elemental Escutcheon

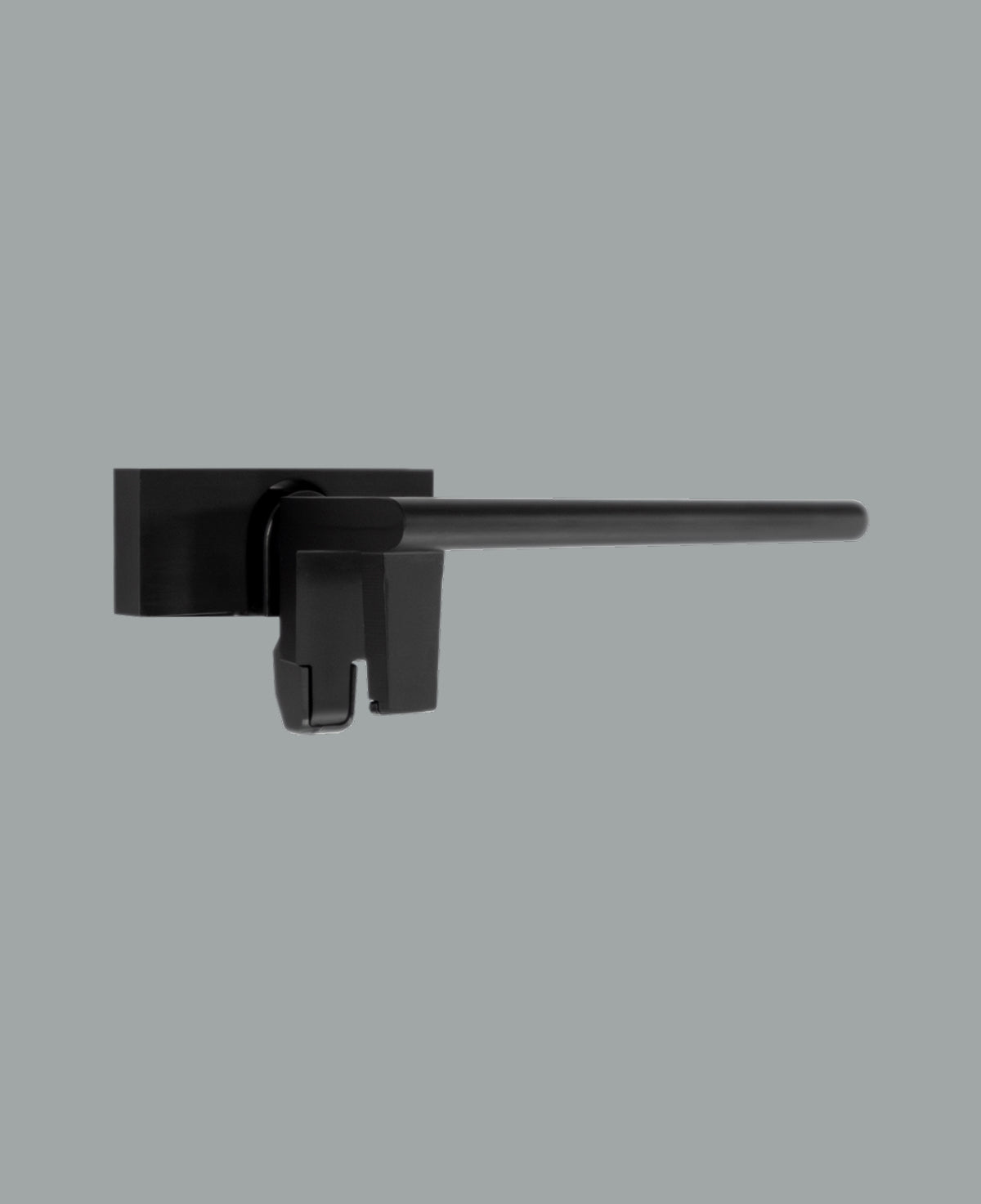

Elemental Venting window fastener
A venting option of the window fastener is available which allows the window to be fastened in a partially open position for passive ventilation.
Available sizes
110mm w x 35mm d

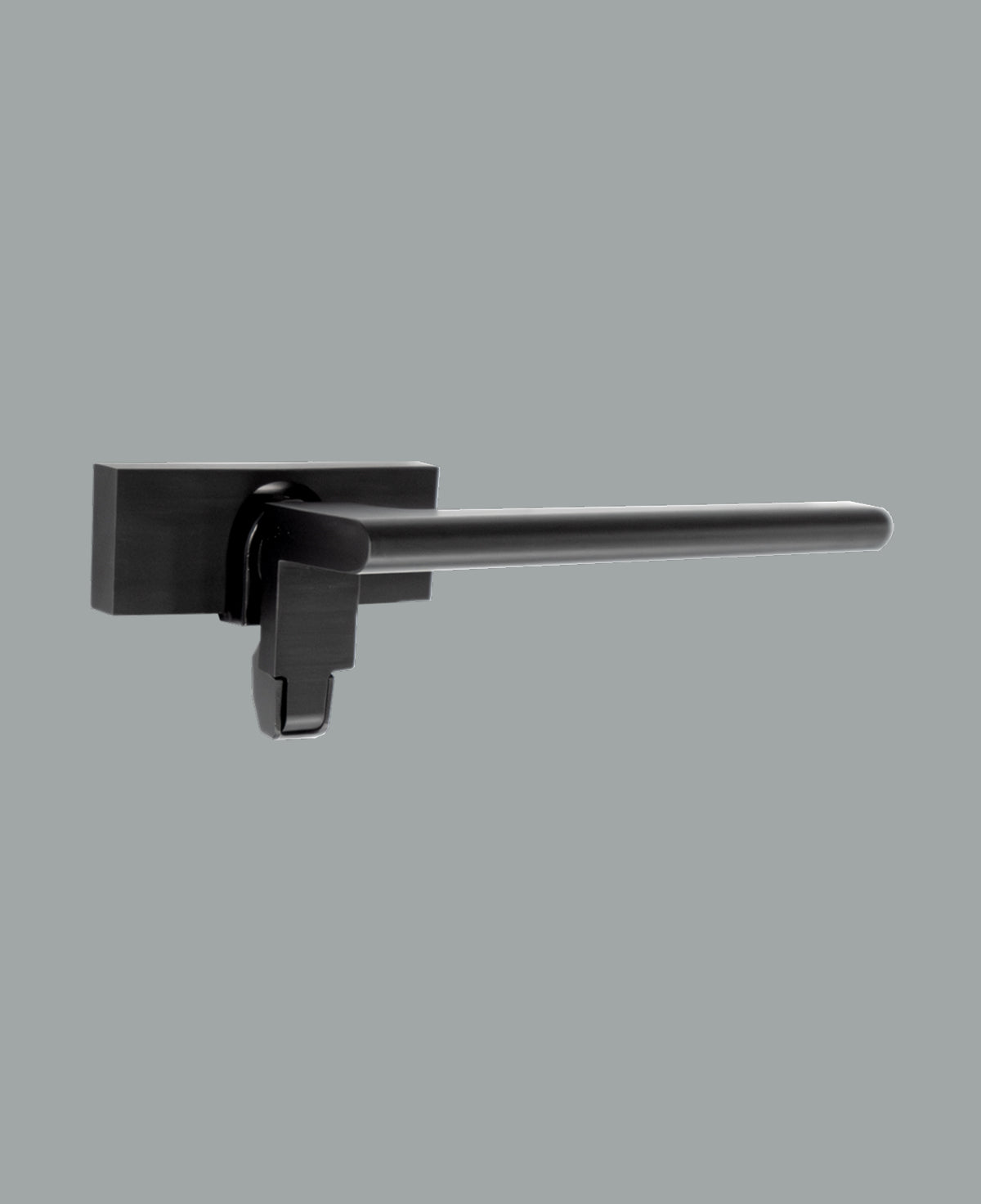

Elemental Window fastener
Closes against the window frame with no visible flap or wedge. Available in a low profile option.
Available sizes
110mm w x 35mm d

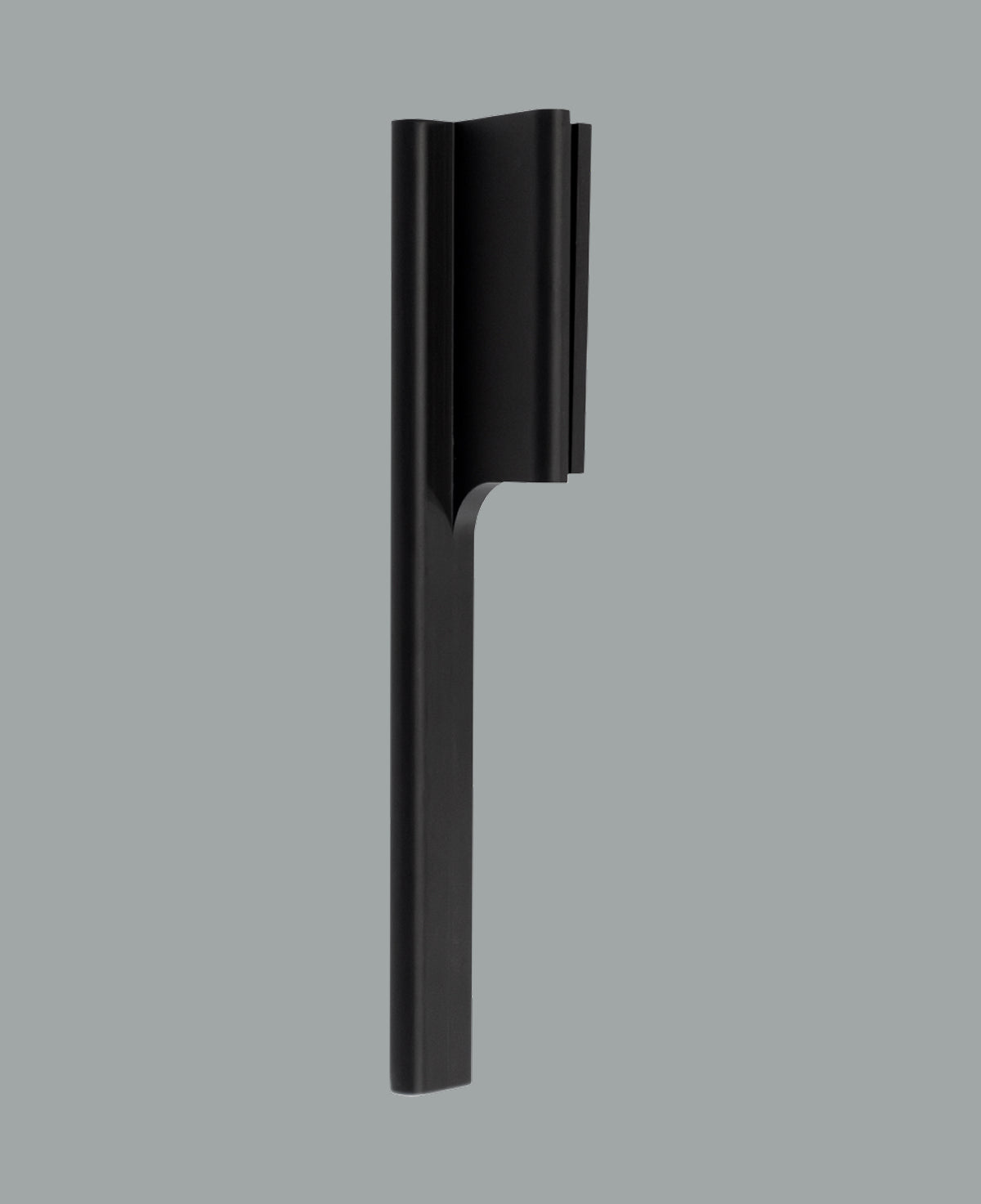

Elemental Bi-fold handle
A sleek swivel lock that activates locking rods in the top and bottom of the door or window panel.
Available sizes
160mm h x 34mm w

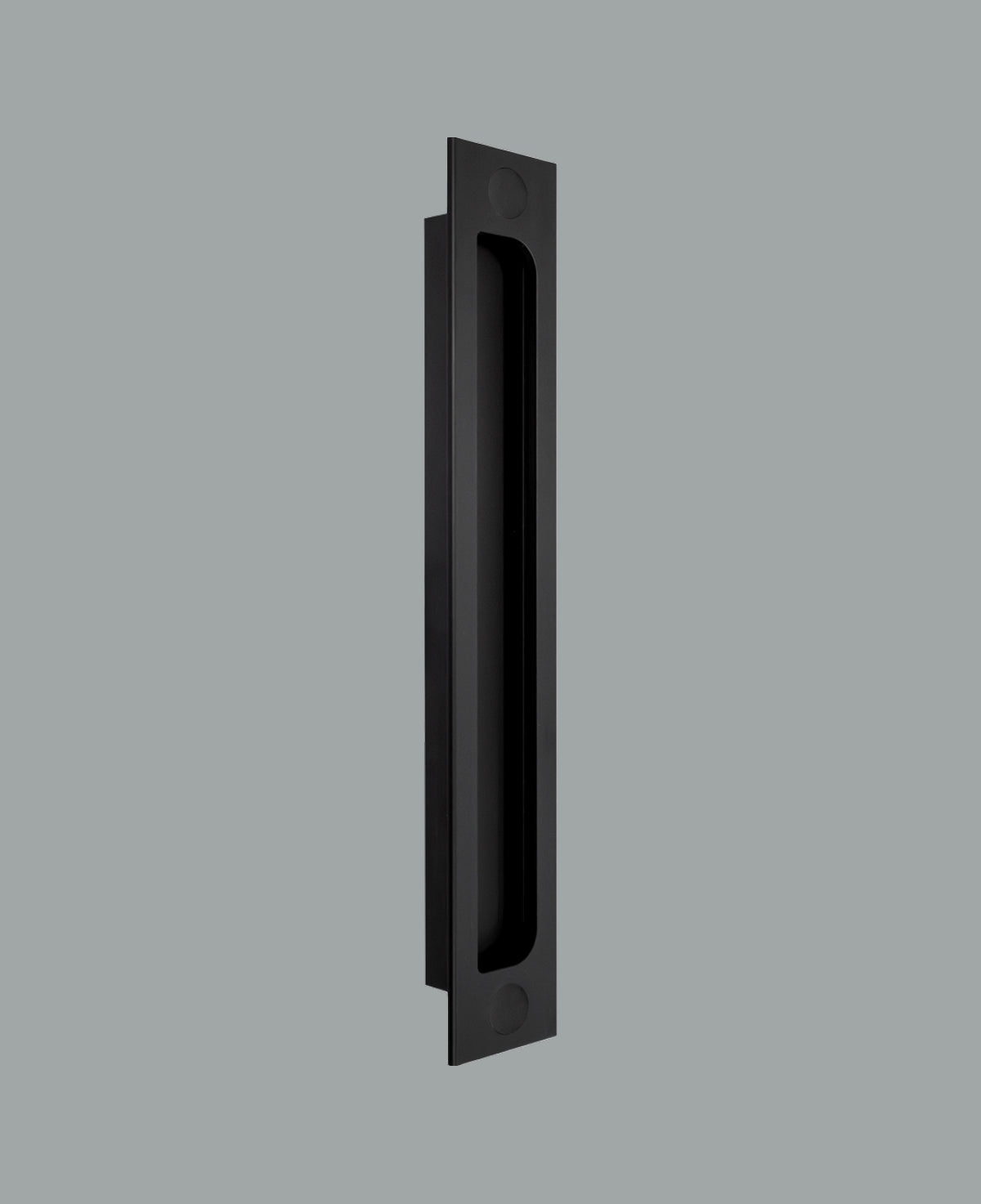

Elemental Flush pull
Ideal for lighter sliding panels. The lock is mounted separately from the pull, and is operated by a key or snib.
Available sizes
269mm h x 44mm w

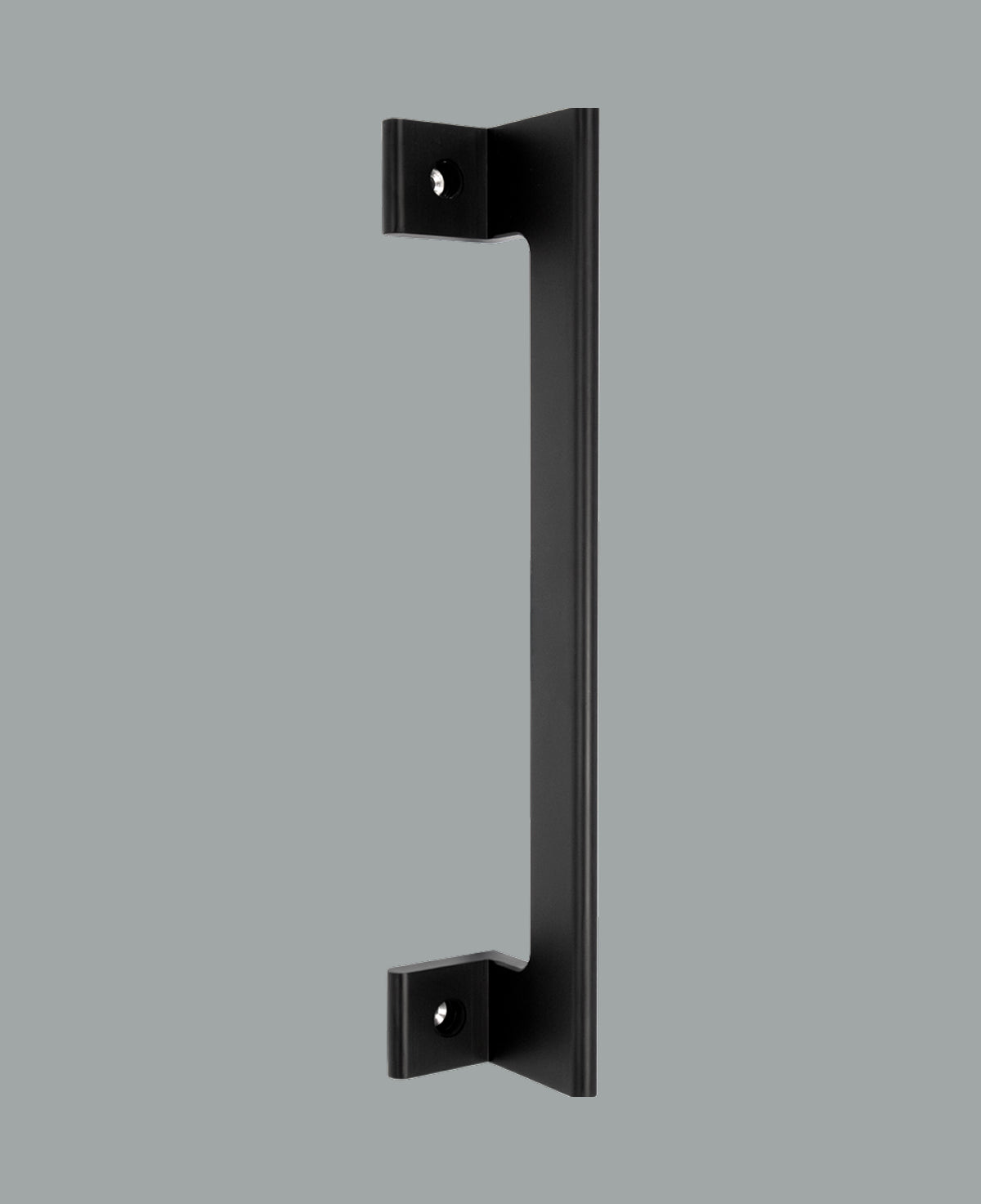

Elemental Pull handle
Available in two standard sizes but can be made to any length by special order. The sliding door handle is separate from the lock, which is operated by a key or snib.
Available sizes
Small: 250mm h
Large: 325mm h

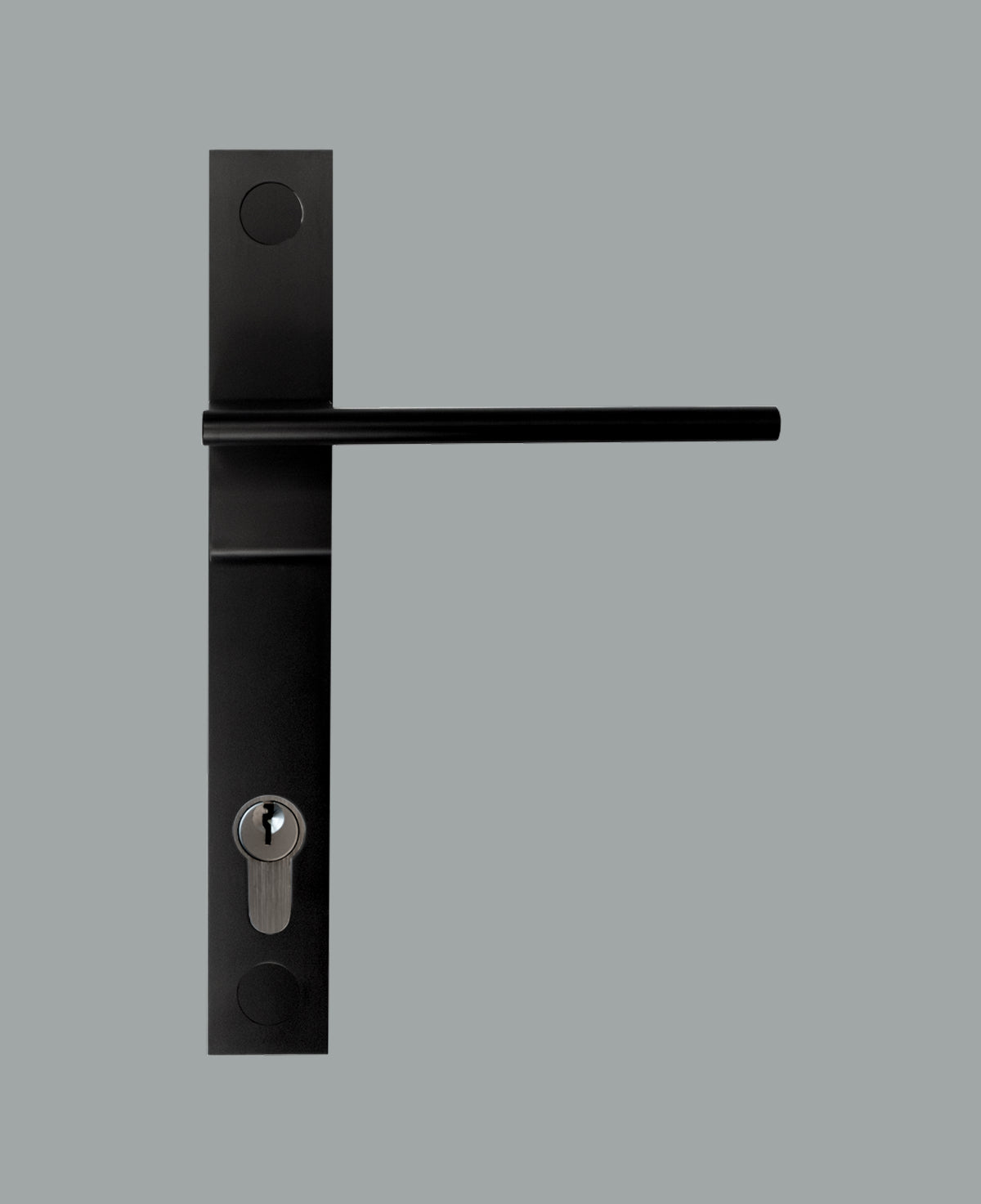

Elemental Lever door handle
Snib or key operation is available for secure four-point locking.
Available sizes
Small Handle length: 125mm h Baseplate: 221mm h
Large Handle length: 140mm h Baseplate: 292mm h
Aria
Need some copy for here

ARIA RANGE

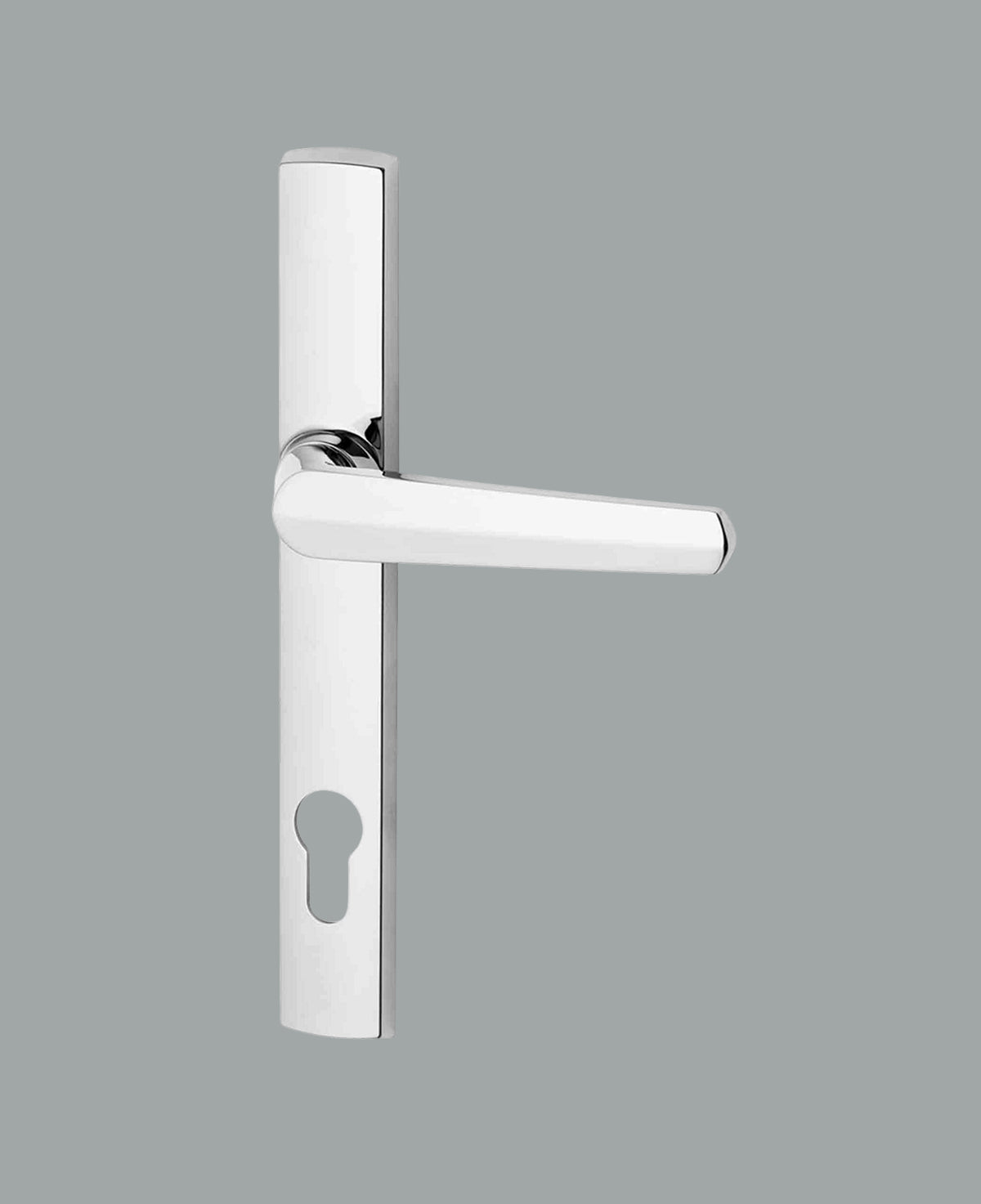

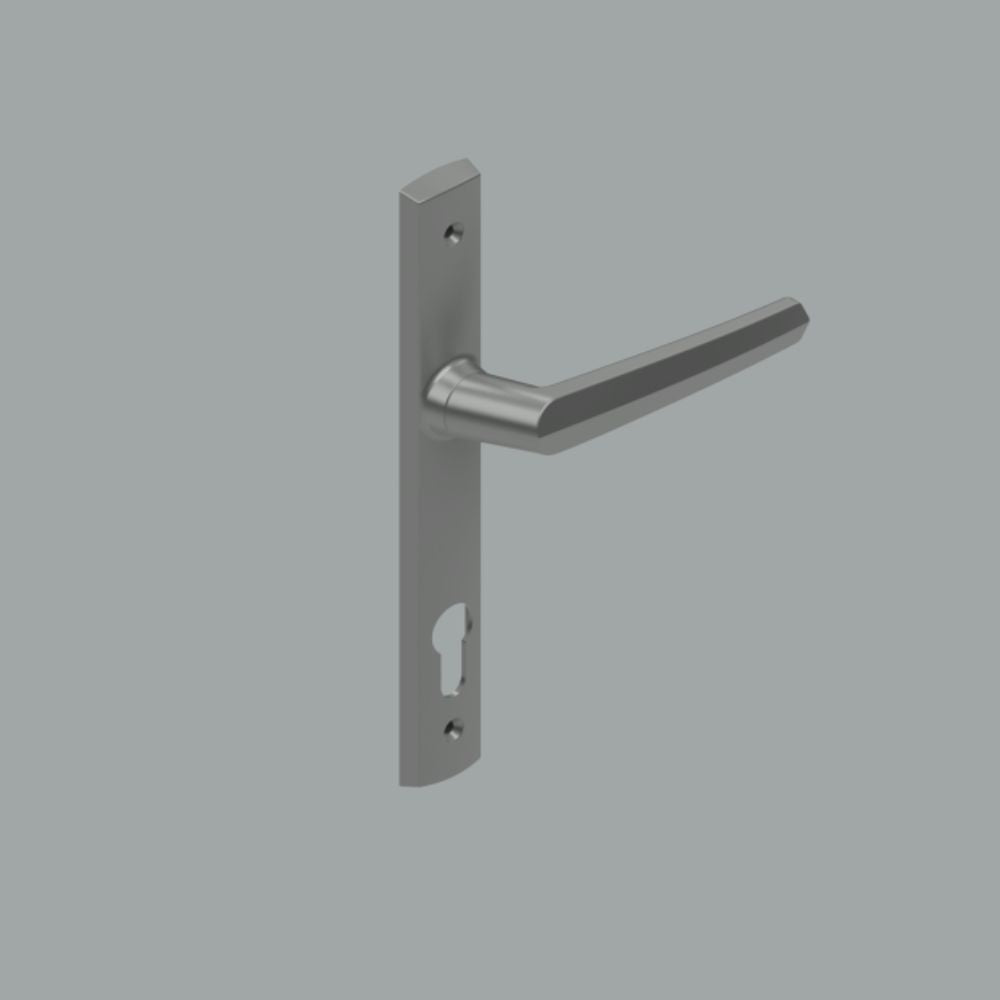

Aria Lockwood Palladium Series Door Furniture
The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
Features
- Stylish range of contemporary non-handed lever designs
- Range of available finishes.
Solid metal lever escutcheon - The Palladium Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
- All lever handles are reversible
- Suits 48.5 mm and 85 mm pitch mortice locksets
- Includes 7.6 mm square stepped spindle
- Available in trade pack
- Lockwood Palladium door furniture is supplied as a complete set, with both the internal and external plates.

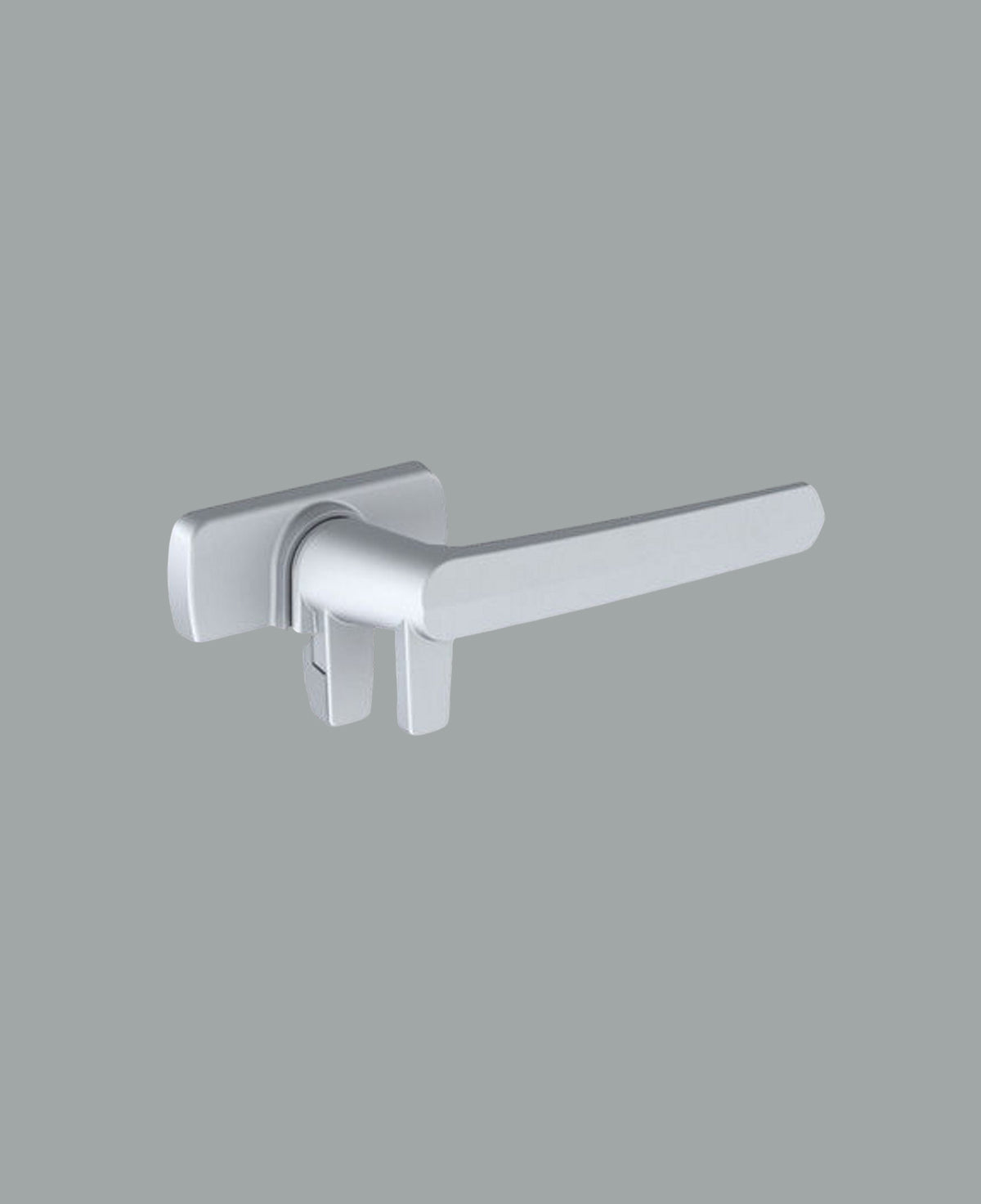

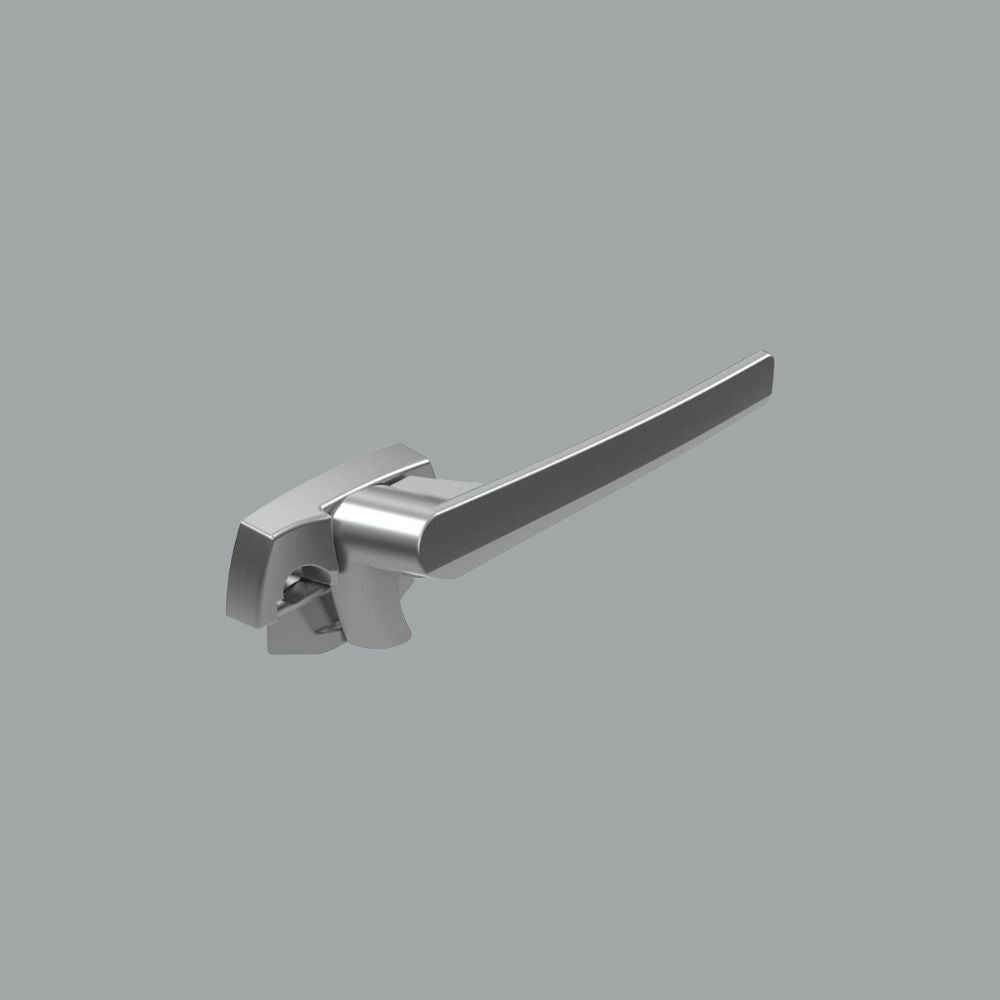

Yale Aria Helix Seal Venting
The Aria Window Fastener incorporates the patented Helix Seal™ cam action for ease of operation. The integrated tongue shield protects the window frame against marking when opening and closing, while providing enhanced window seal compression on closing.
The double tongue venting fastener allows controlled ventilation especially in windy conditions.
This fastener blends seamlessly with the full range of Aria furniture, to create a modern and consistent look. It can be used on either aluminium or uPVC, casement or awning windows.
Features
- Helix Seal™ patented 90° cam action
- Enhanced seal compression without the need of a flap or wedge
- Tongue shield with chamfered edge to protect the window frame
- Double tongue allows controlled ventilation especially in windy conditions
- High quality pressure die-cast components with colour matched tongue shield
- Face fixing
- Concealed fixing
- Quality friction joint providing tested and proven durability
- New Zealand made
Options
- Left and right handed models
- Available in a wide range of powder coat colours or satin chrome finish

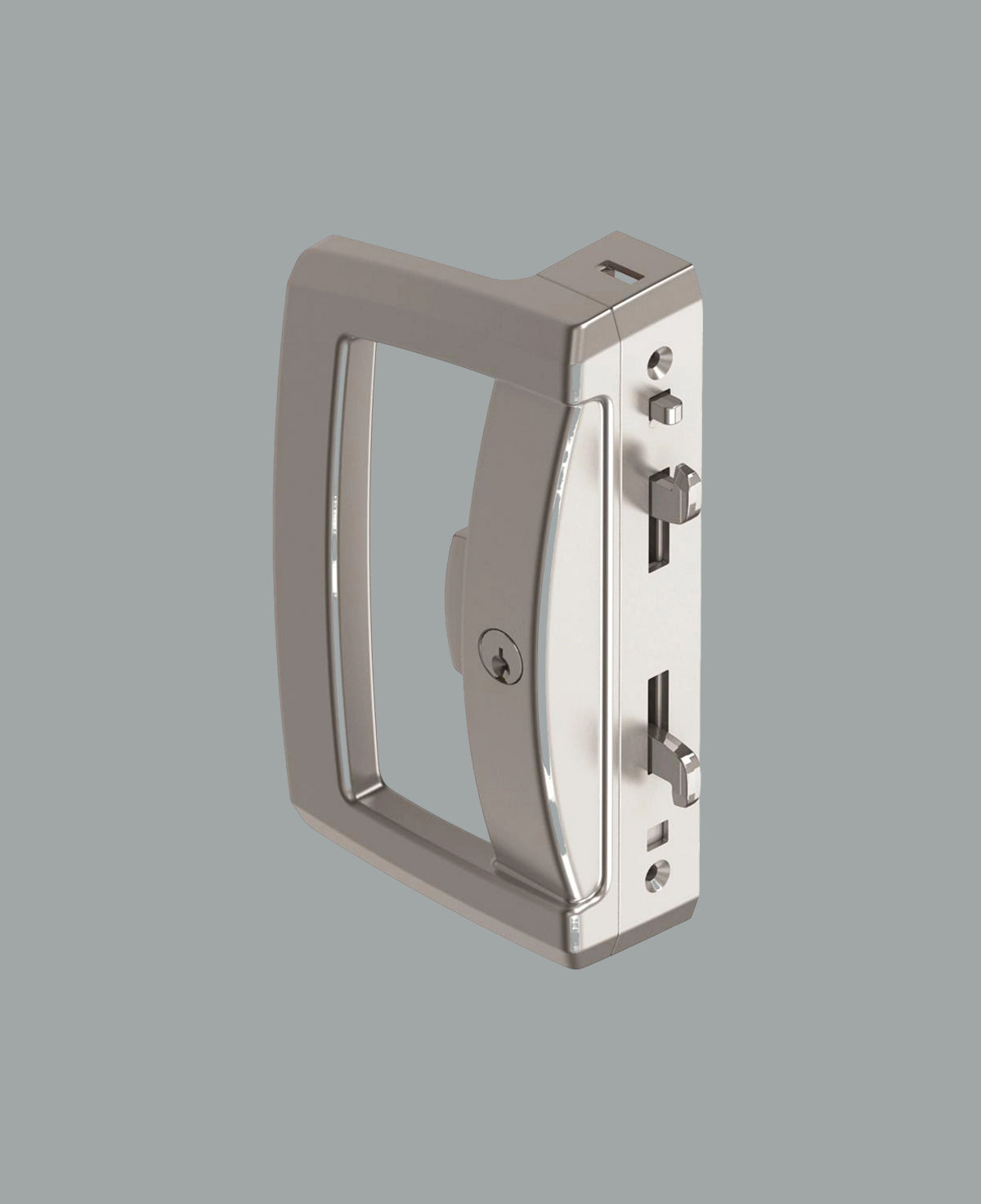

Yale Aria Endeavour Sliding Door Lock
Suitable for use with aluminium, timber or uPVC horizontal sliding doors, the Aria Endeavour Surface Mounted Sliding Door Lock incorporates enhanced security and safety features. Styling cues are taken from the Aria design, enabling a consistent look throughout the home.
Features
- Red deadlock indicator
- Opposing anti-lift beaks for added security
- Anti-slam pin protects from accidental damage
- Retrofittable – easily replaces most sliding door locks
- Non-handed lock chassis
- Available with internal D handle or internal Pull
- Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience
- New Zealand made

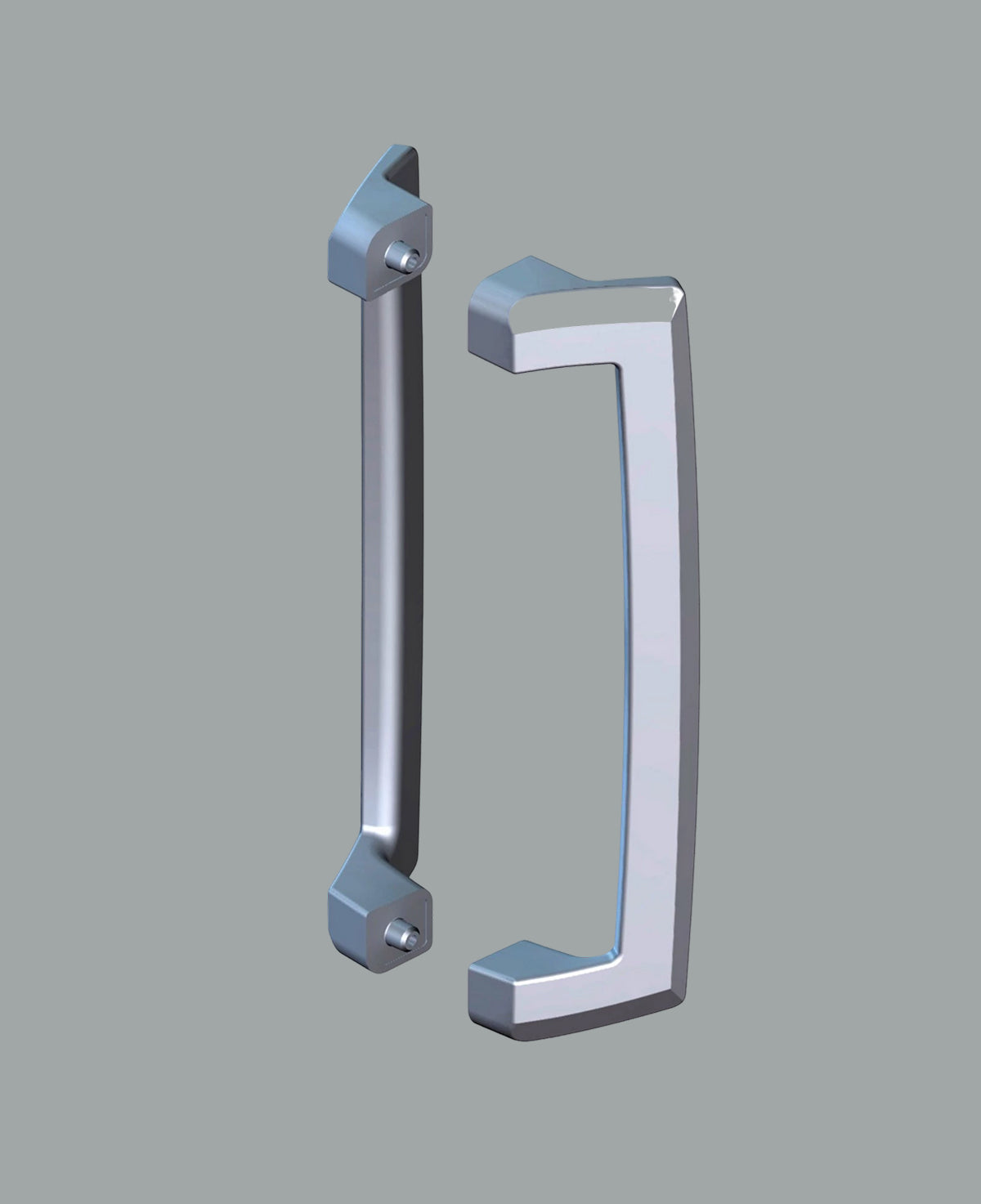

Yale Aria D Handle
The Aria D Handle offers an attractive pull option for sliding doors. Designed for use with the Pinnacle Sliding Door Lock this combination provides a practical solution for mortice or in-stile sliding door suites.
Suitable for use with aluminium, timber or uPVC the D Handle styling is taken from the popular Aria range of furniture, allowing for a consistent look throughout the home.
The Aria D Handle is available kitted with the Pinnacle Sliding Door Lock and the Palladium or Palladium Xtra escutcheon set.
Features (kitted)
- Large comfortable grip area with 272mm hole centres
- Popular Aria styling provides consistency with other hardware
Options
- Suitable for aluminium and uPVC doors
- Options to suit door thicknesses from 25mm-70mm
- Single sided handle option available
Digital Hardware
As its name implies, the Elemental hardware range strives for simplicity. Elemental is a unique range of hardware that is made from extruded aluminium.
Available in anodised colours: Silver, Black, Champagne, Light Bronze, Medium Bronze, Dark Bronze.

Entry & Digital Hardware

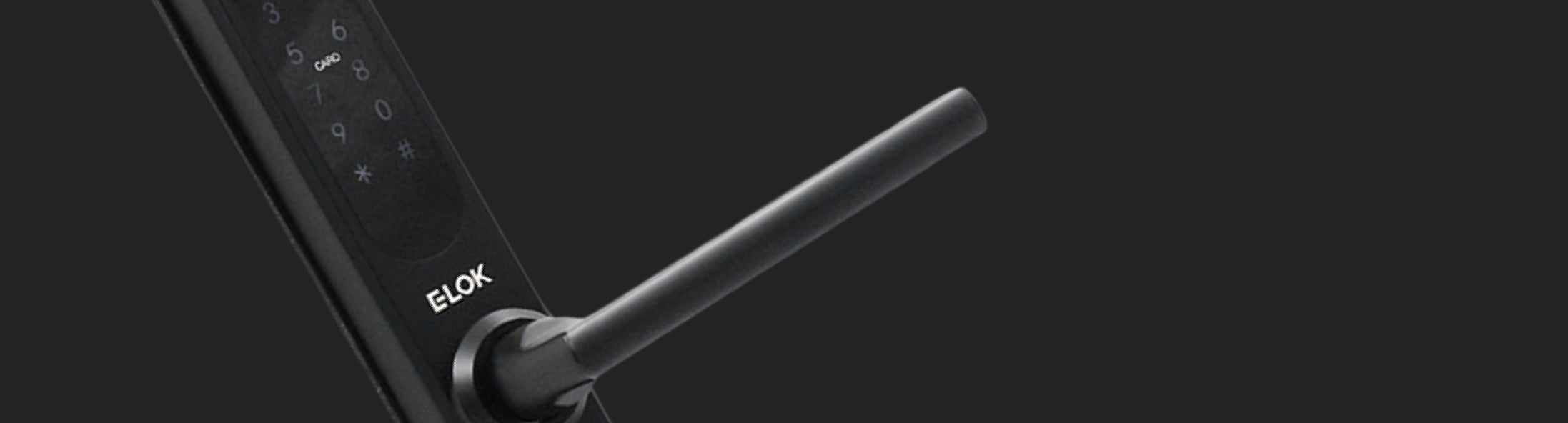

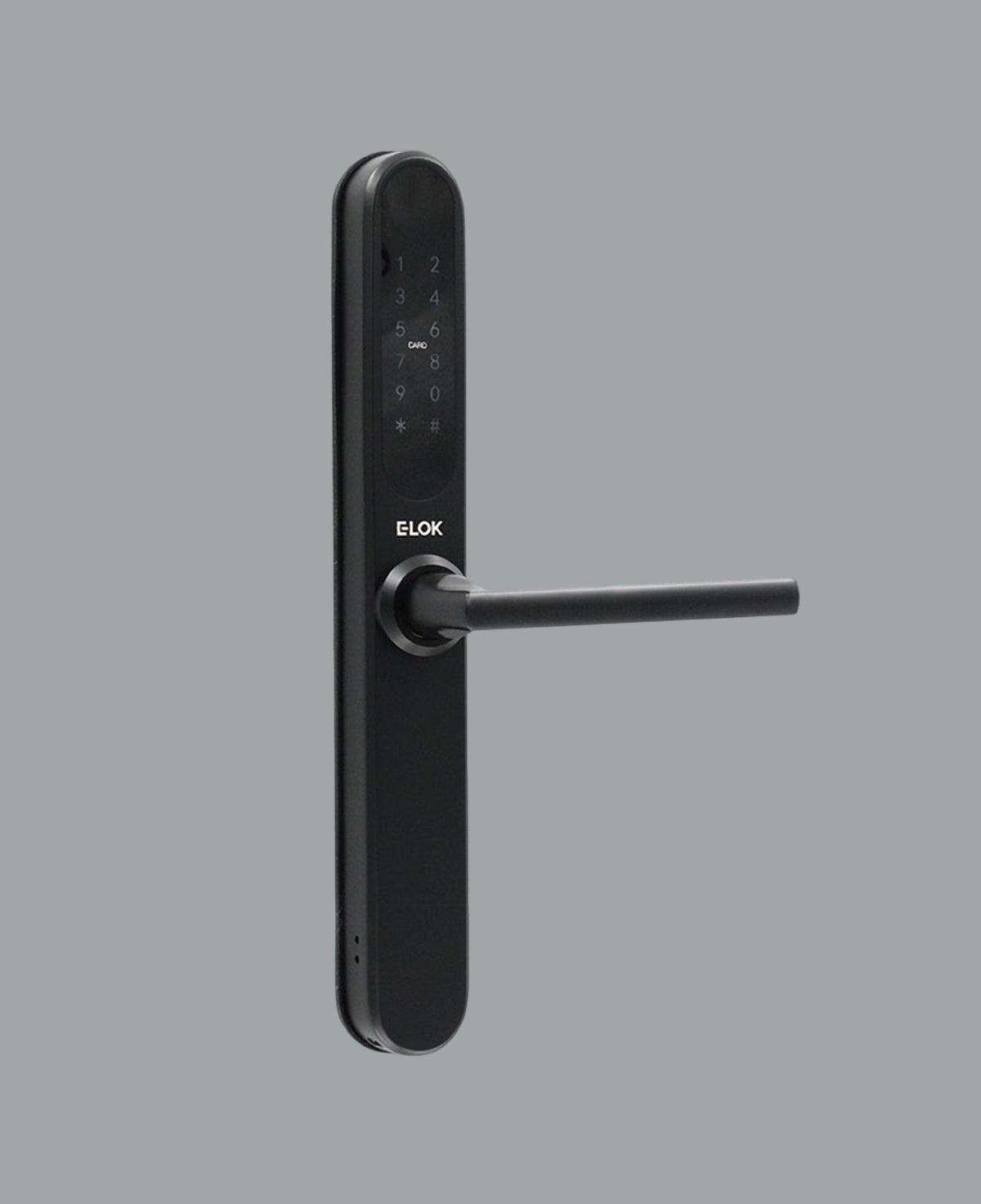

ELok 9 Series Digital Lock
The E-LOK 9 Series is a significant upgrade, introducing a new era in smart lock technology for New Zealand homes. It offers advanced hardware in two additional stylish finishes, Satin Brass and Gun Metal, which are especially popular in bathrooms and kitchens, showcasing a blend of modern innovation with a nod to contemporary interior trends.
High Quality Build
Purpose built for New Zealand conditions. E-LOK Smart Locks are built to last.
Bluetooth as Standard
Powered via Bluetooth with full app control, Manage your E-LOK Smart Lock with ease.
Full Functionality
E-LOK Smart Locks spare no features and offers a fully functional electronic entry system.
Sleek Design
Every Smart Lock in the E-LOK Range is designed with modern architecture and trends in mind.
